Product Description

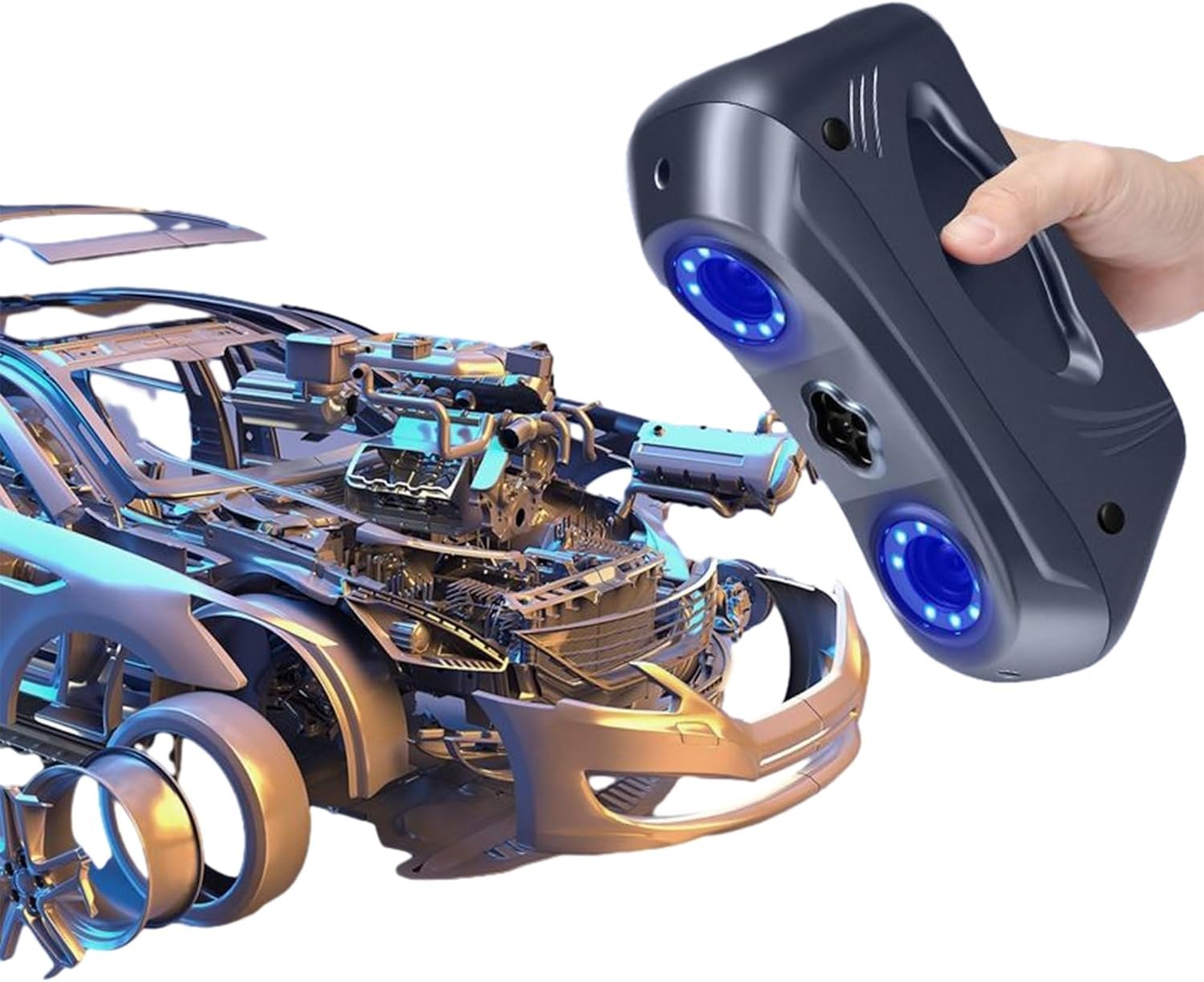

SMALL STATURE BIG ENERGY
Large format high-speed scanning allows for easy handling of complex and large items. The T22 inherits the iconic features of high precision and stable repeatability, while also focusing on ergonomic and lightweight design, making it easier to grip
HIGH PRECISION DATA [0.01mm Measurement Accuracy]
T22 adopts light display scanning technology, with a precision measurement accuracy of up to 0.01MM/M and a volume accuracy of 0.01-0.35MM/M. It accurately reproduces the geometric information and surface details of the object surface, bringing you a higher quality 3D detection experience

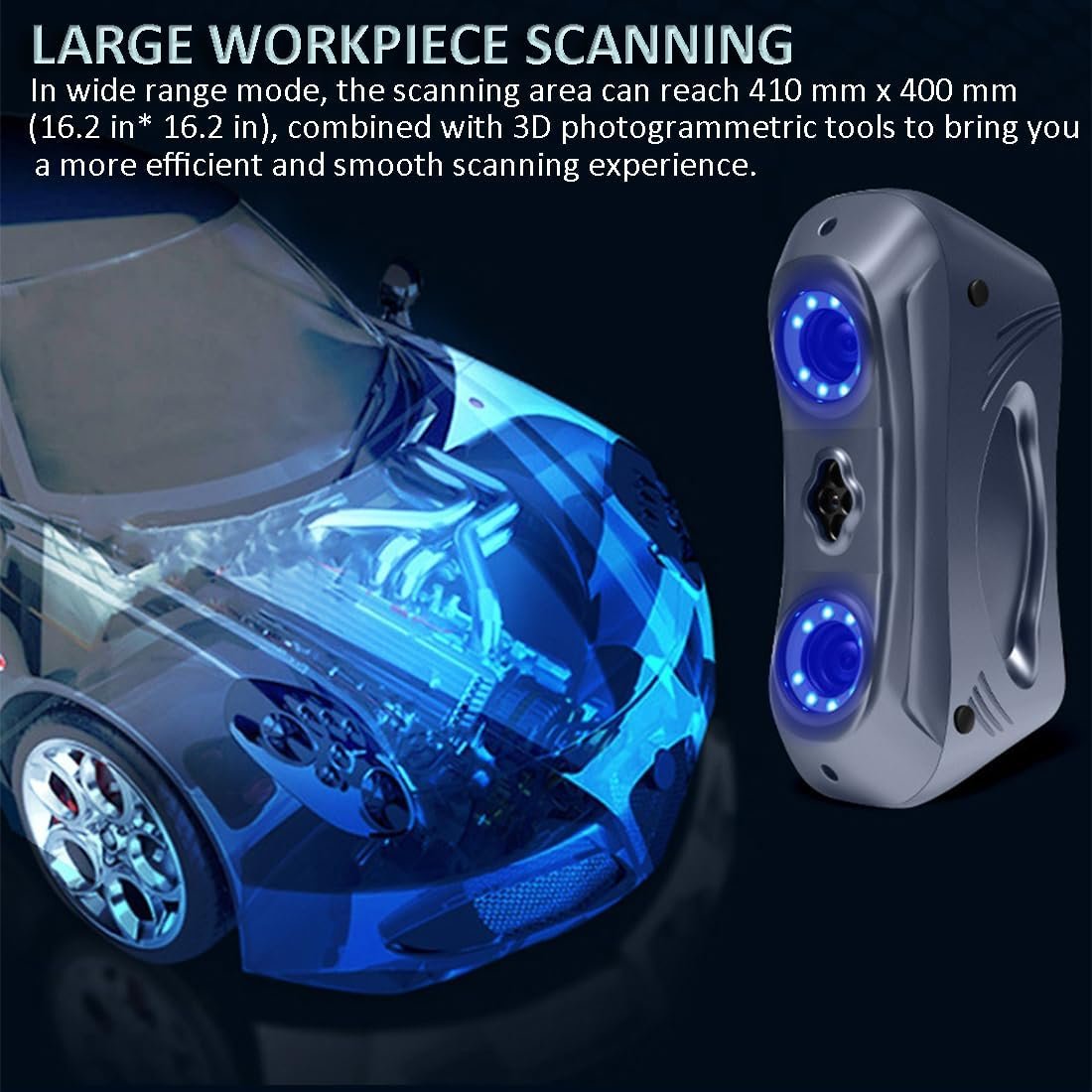

LARGE WORKPIECE SCANNING [The best solution for complex parts]
In wide range mode, the scanning area can reach 410 mm X 400 mm, and with the help of 3D photogrammetry tools, it brings you a more efficient and smooth scanning experience

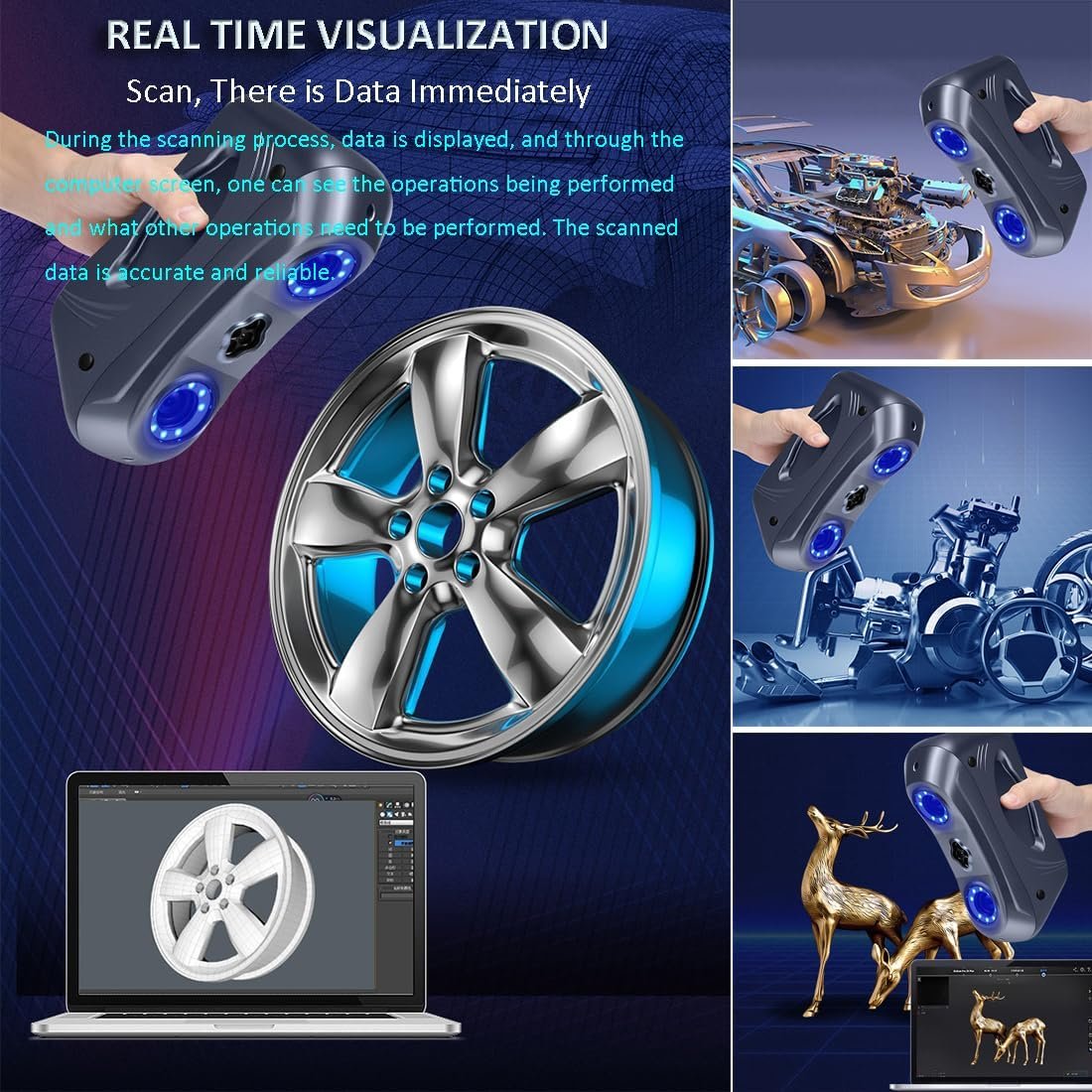

TRANSFORMING PHYSICAL OBJECTS INTO MODELS WITH JUST ONE SCAN
By eliminating the tedious and complex modeling process, it is convenient to obtain three-dimensional data of physical models, providing high-precision measurement solutions for industries such as the automotive industry, transportation, aerospace, mold testing, energy manufacturing, and mechanical manufacturing
Easily obtain design intent
Replacing damaged components (CAD models cannot be found), updating obsolete parts, installing new parts into current components or environments, generating new production plans, or analyzing competitors’ product characteristics can all use the technology of 3D scanners to extract dimensional information and easily represent this information as point clouds or automatic real-time grids
Details that cannot be hidden
By optimizing the handheld fine mode algorithm, it brings more powerful detail capture ability, not missing any complex surfaces or unreachable areas, displaying the three-dimensional shape of objects with high details, and presenting an incredibly smooth and efficient 3D digital journey

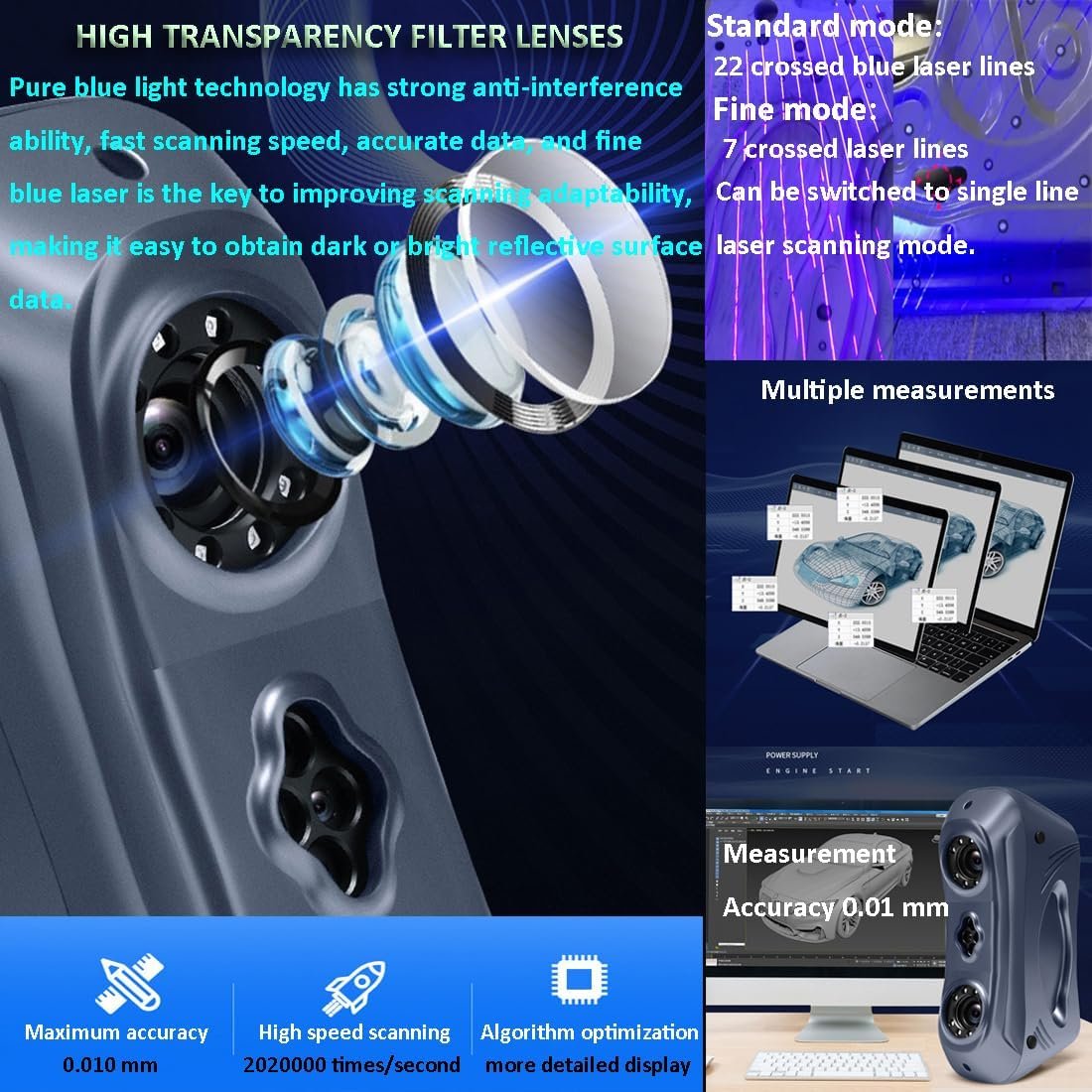

Enable precise acquisition with zero obstacles
Pure blue light technology has strong anti-interference ability, fast scanning speed, accurate and precise data. Blue laser is the key to improving scanning adaptability, making it easy to obtain dark or bright reflective surface data
Function can be freely switched according to requirements
The standard mode has 22 crossed blue laser lines, and the fine mode has 7 sets of crossed lasers that can be switched to a single line laser scanning mode. It is suitable for scanning deep holes and blind spots, and can accommodate a wider range of scanning scenarios
Reverse helper
Fine in micro
High transparency filter
Multi mode scanning

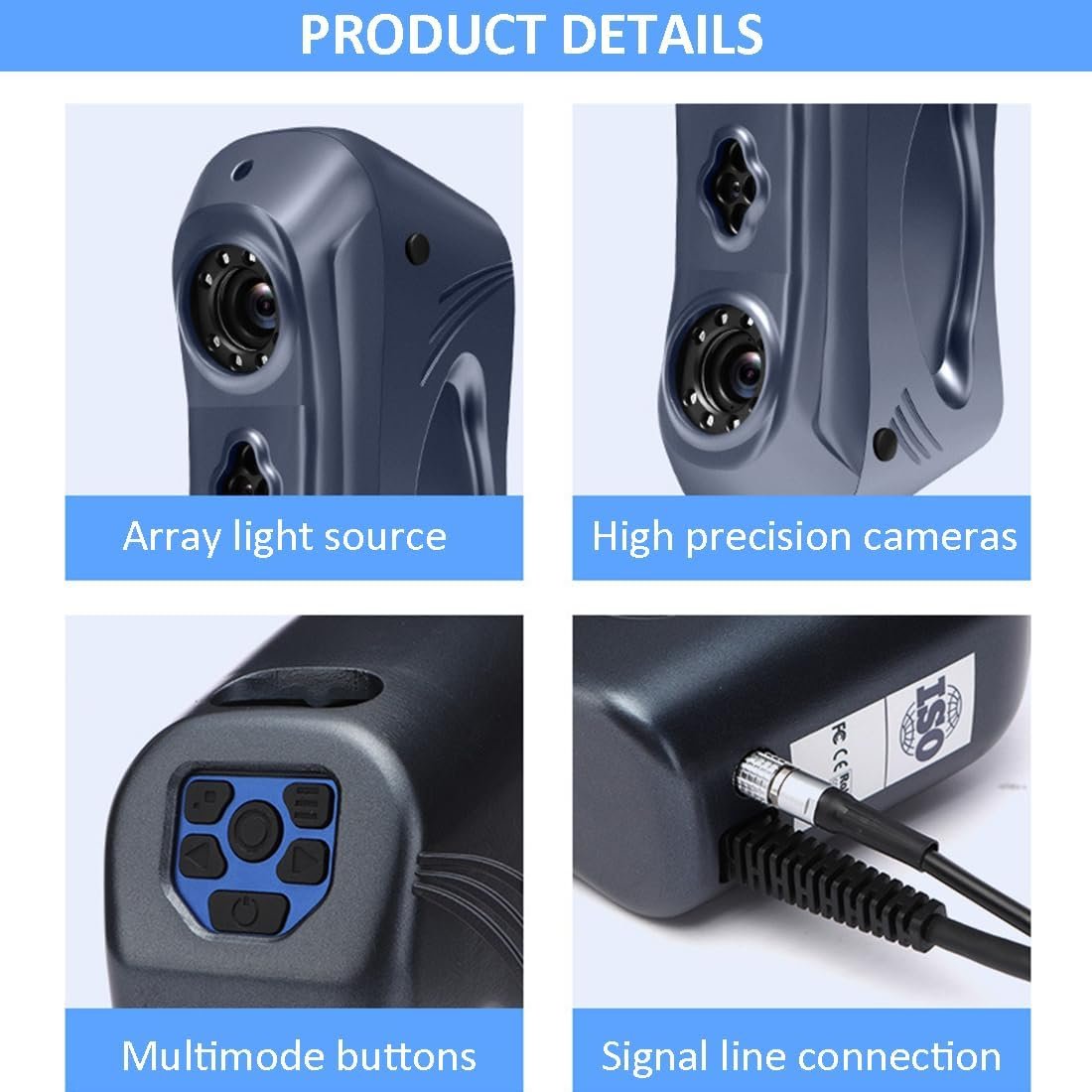

Array type light source
High precision industrial camera
Multi mode button
Connection completed

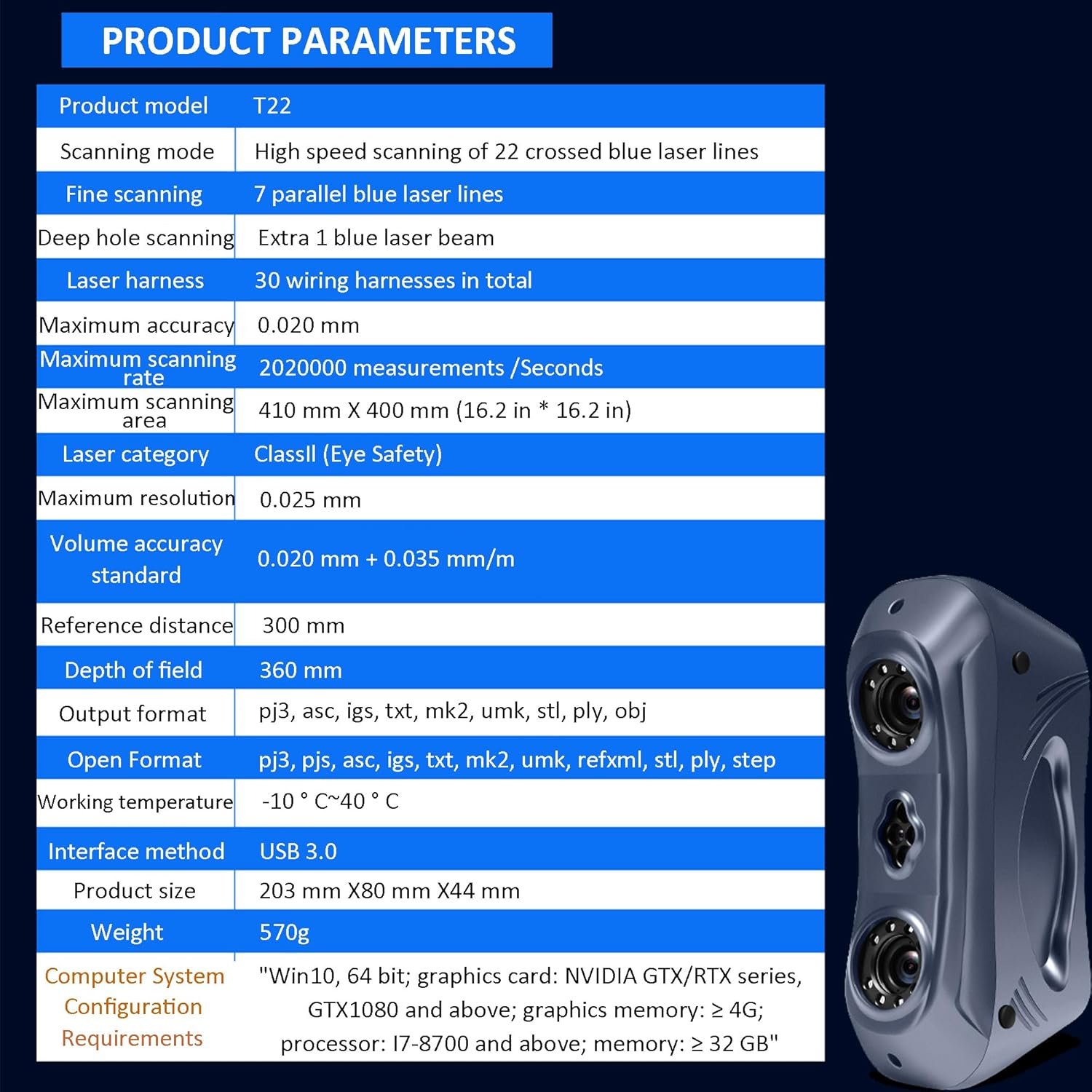

T22 INDUSTRIAL 3D SCANNER PARAMETERS
Product Name T22 Industrial 3D scanner Laser Category Class ll (eye safety) Scanning Mode High speed scanning of 22 crossed blue laser lines Fine Scanning 7 parallel blue laser lines Deep hole scanning Extra 1 blue laser beam Laser Harness 30 wiring harnesses in total Maximum Accuracy 0.020 mm Maximum Scanning Rate 2020000 measurements / seconds Maximum Scanning Area 410 X 400 mm (16.2 * 16.2 inch) Maximum Resolution 0.025 mm Volume Accuracy Standard 0.020 mm + 0.035 mm/ m Reference Distance 300 mm Depth of Field 360 mm Output Format pj3, asc, igs, txt, mk2, umk, stl, ply, obj Open Format pj3, pjs, asc, igs, txt, mk2, umk, refxml, stl, ply, step Computer System Requirements Win10, 64 bit; graphics card: NVIDIA GTX/RTX series, GTX1080 and above; graphics memory: 2 4G; processor: 17-8700 and above; memory:≥32 GB
【Accuracy Up to 0.2 mm】The T22 3D scanner highest single-frame Accuracy can reach 0.2 mm. supports feature creation alignment and comparison between digital and scanning models, and can generate detection reports with just one click.
【Multi scanning modes】Equipped with scan software. T22 Scanner allows you free scanning, fixed scanning, and human scanning, indoor or outdoor scanning. When you want to scan a human face or body, you can set to the human mode and gain a natural 3D look or body model.
【Eye-safe infrared Light】The T22 3D scanner can scan faces, the human body, and animals with a safe and invisible light source. Support marker mode to scan large or featureless objects. Able to scan marked industrial parts, teeth; Suitable for the medical industry to perform body-related scan modeling, such as Medical assistance bracket.
【Widely applicable】This T22 3D scanner is suitable for many industrial fields. We provide high-precision measurement testing solutions for industries such as automotive industry, aerospace, transportation, mold testing, energy manufacturing, and mechanical manufacturing.
【Portable】The T22 3D Scanner is very light, with a weight of 570g, you can carry to any outdoor monument spot and most of the indoor museum. Simply scan, Export your creation.
