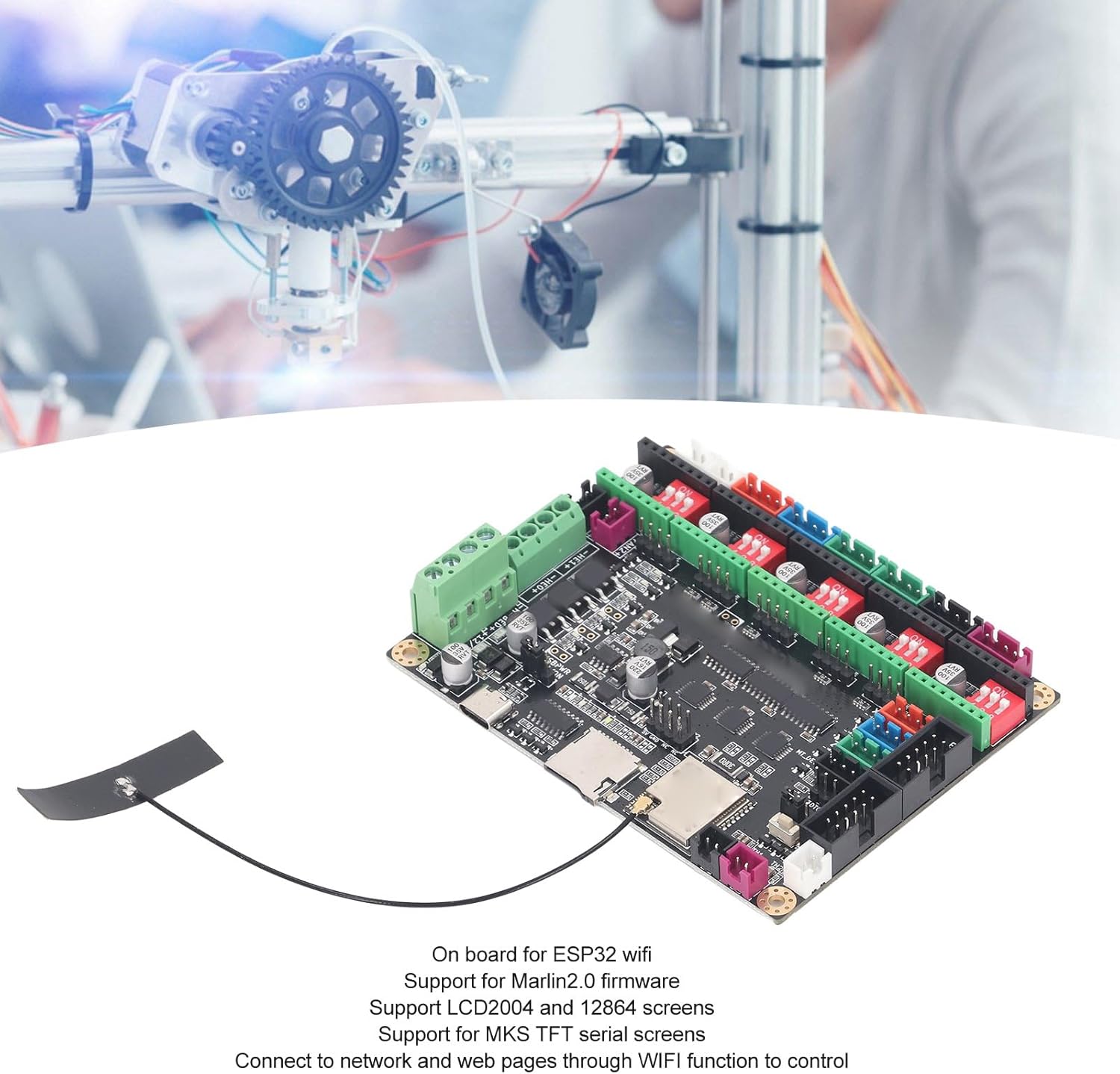

ESP32 3D Printer Motherboard Microstepper Motor Driver for Marlin2.0 Firmware Support MKS MINI12864 V3 Compatibility LCD Screen 5 A4988 Stepper Motor Drivers Mainboard Controller

< Product Description

ESP32 3D Printer Motherboard Microstepper Motor Driver for Marlin2.0 Firmware Support MKS MINI12864 V3 Compatibility LCD Screen 5 A4988 Stepper Motor

Features:

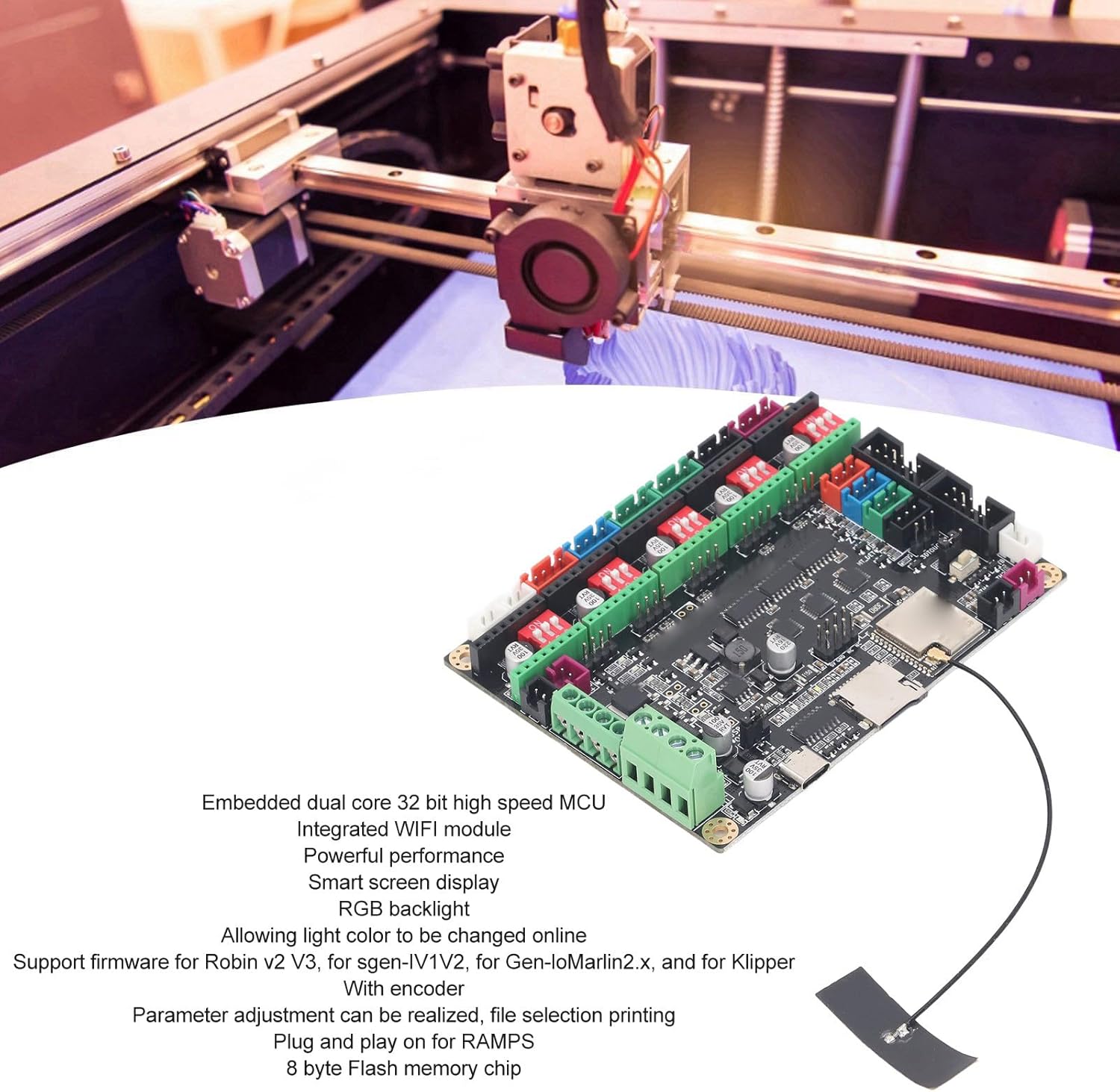

[POWERFUL AND EFFICIENT]: Embedded dual-core 32-bit high-speed MCU and integrated andmodule for powerful performance.

[VARIOUS FUNCTIONS]: Support for Marlin2.0 firmware and various LCD screens. Update firmware via USB and control 3D printer through function.

[STORAGE CAPACITY]: 8 byte flash memory chip for effective in different application scenarios.

Spec:

Item Type: 3D Printer Motherboard Kit

For MKS TinyBee V1.0 Motherboard:

Material: PCB

Motherboard Model: For MKS TinyBee V1.0

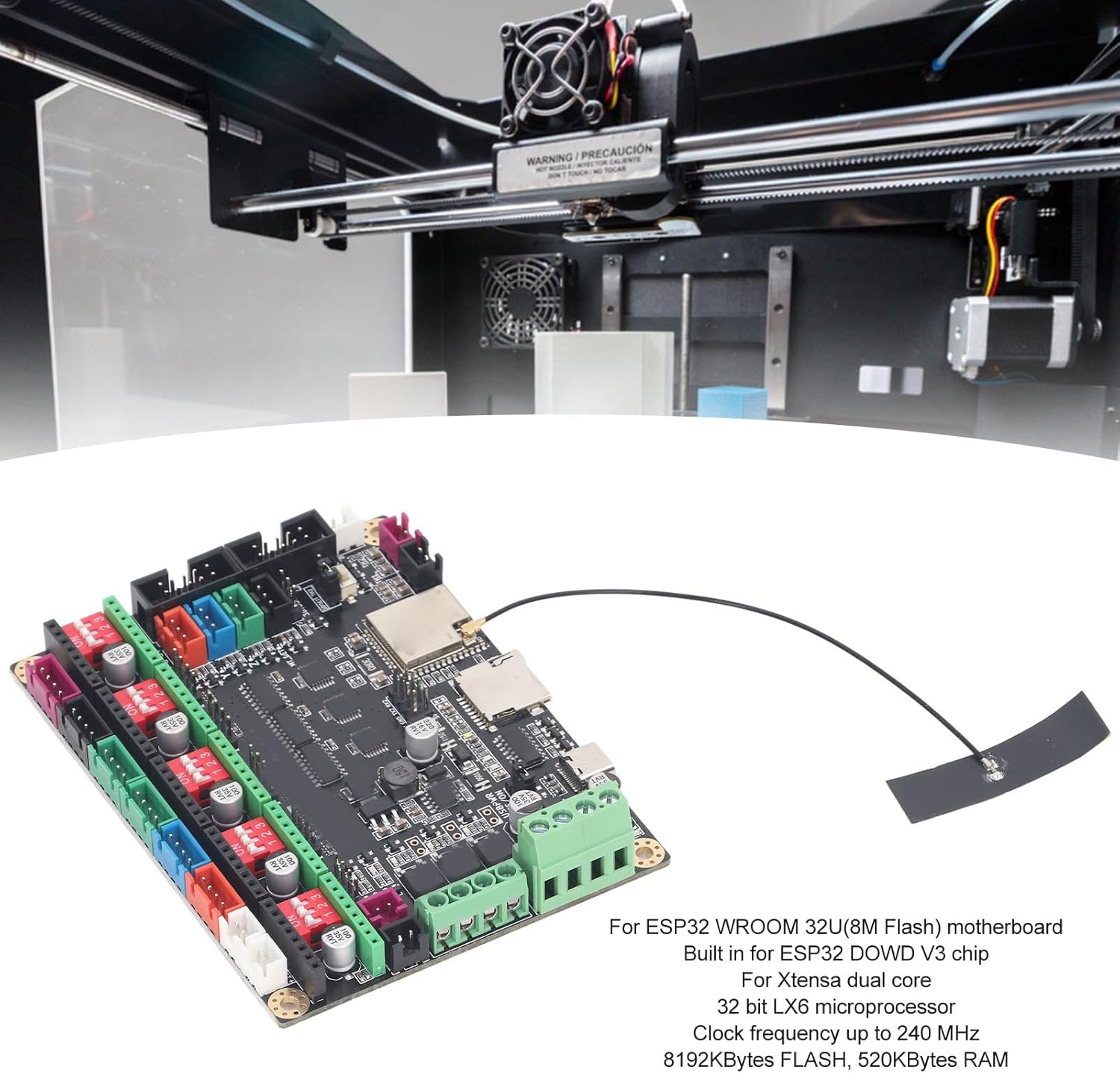

MCU: For ESP32 WROOM 32U

MCU Frequency: 240MHz

Memory: 520K

Input Power: DC12~24V Heater: 2 Heater ends and 1 heater bed

Temperature ADC: 3 NTC100K: TH1, TB, TH2(jumper selection required)

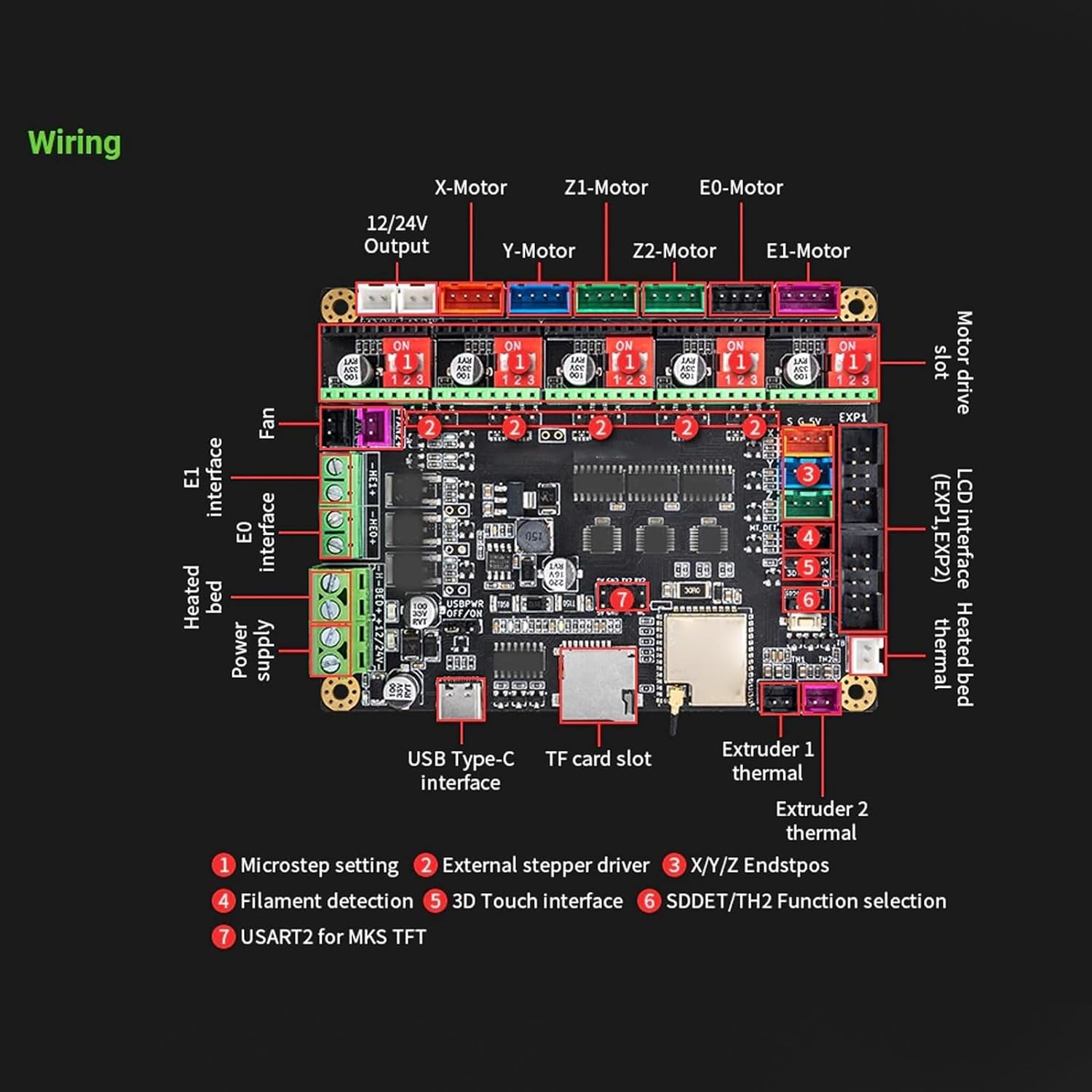

Motor Interface: 5 Axes 6 motor interface (double Z axes parallel)

Step Driven Mode: STEP or DIR Moode

Drive: Support external high current drive

Subdivision Setting: DIP switch

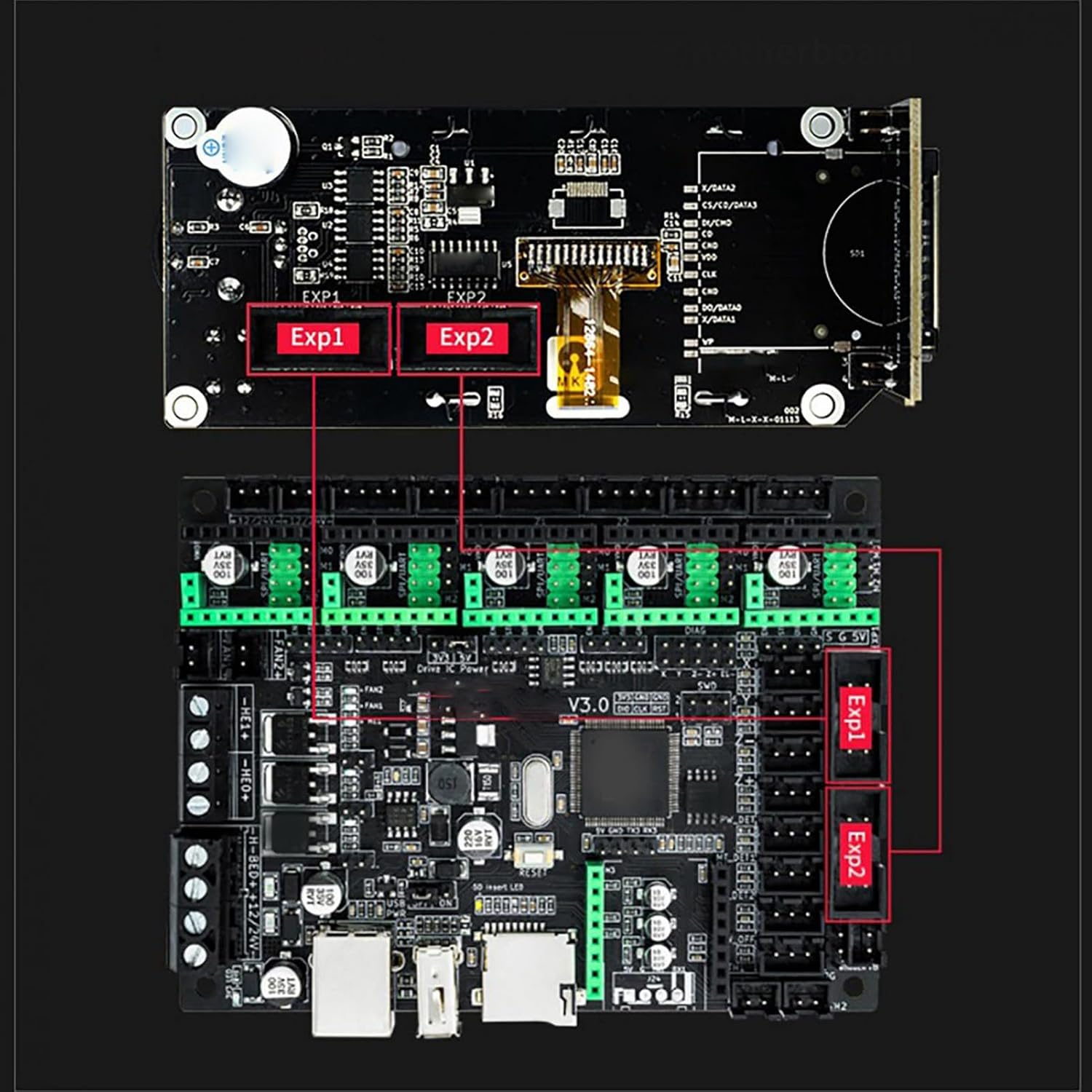

LCD Port: Support LCD 2004 or 12864, for MKS MINI12864 V3

Serial Port: For MKS TFT series screen reserved USART2

Terminal Stop: X, Y, Z, MT_DET

3D Touch: Supported

Power : Support power reverse and power

Motor Back Electromotive Force: Can be absorbed by the phase sequence to the stepper driver

Firmware: For Marlin 2.0.x

Firmware Update Mode: USB flash drive upload

Small Memory Card: Not include

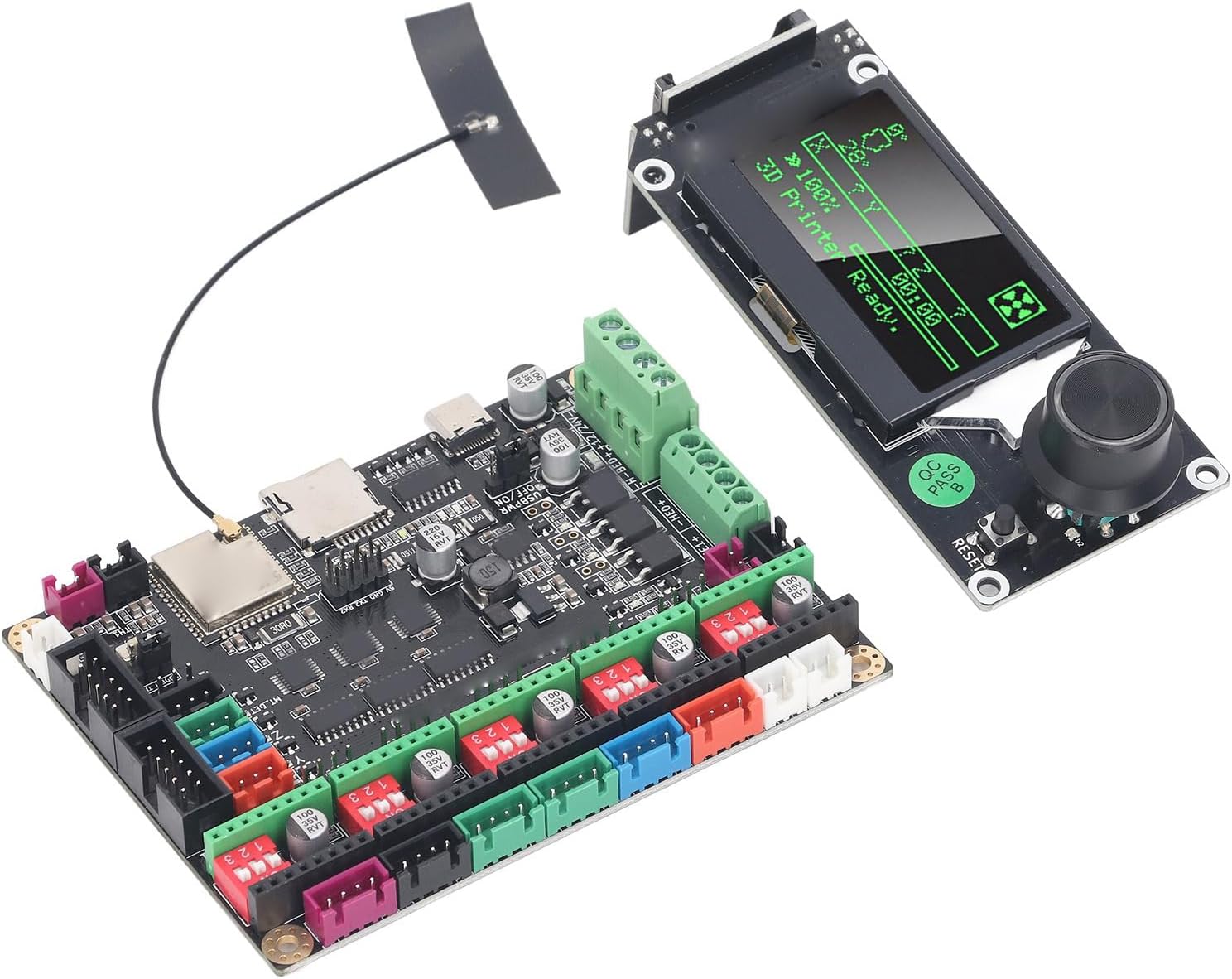

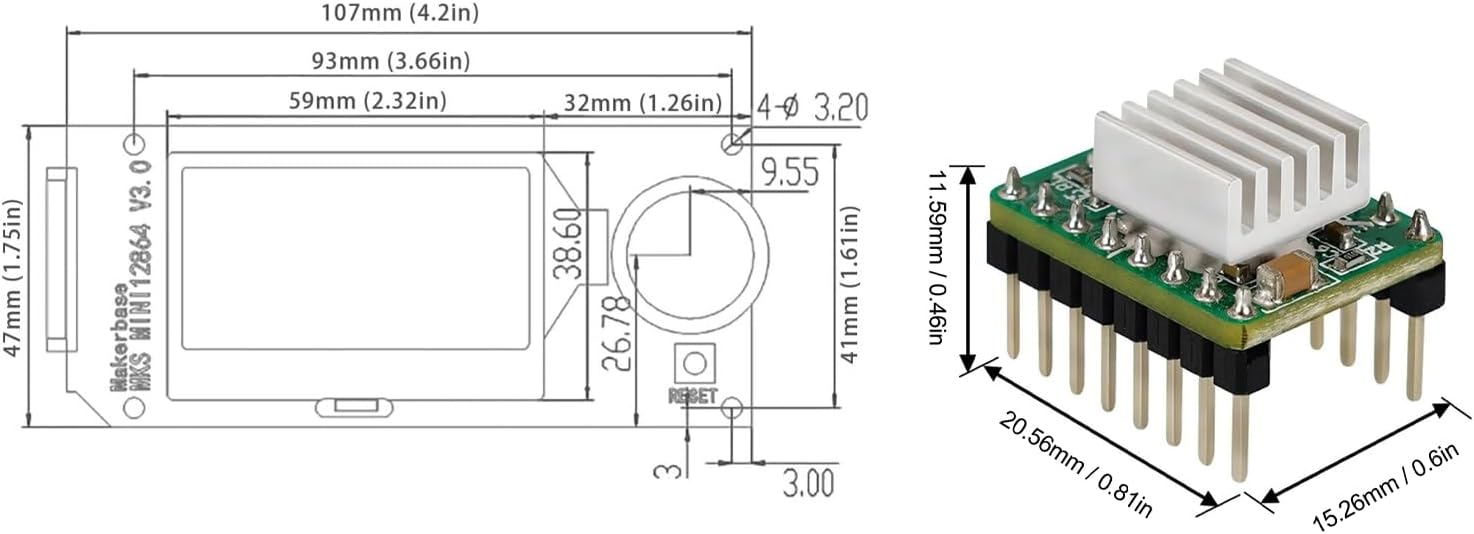

For MKS Mini12864 V3.0 LCD Graphic Smart Display:

Model: For MKS Mini 12864 V3

Material: PCB

Logic : Support 3.3V, 5V logic input

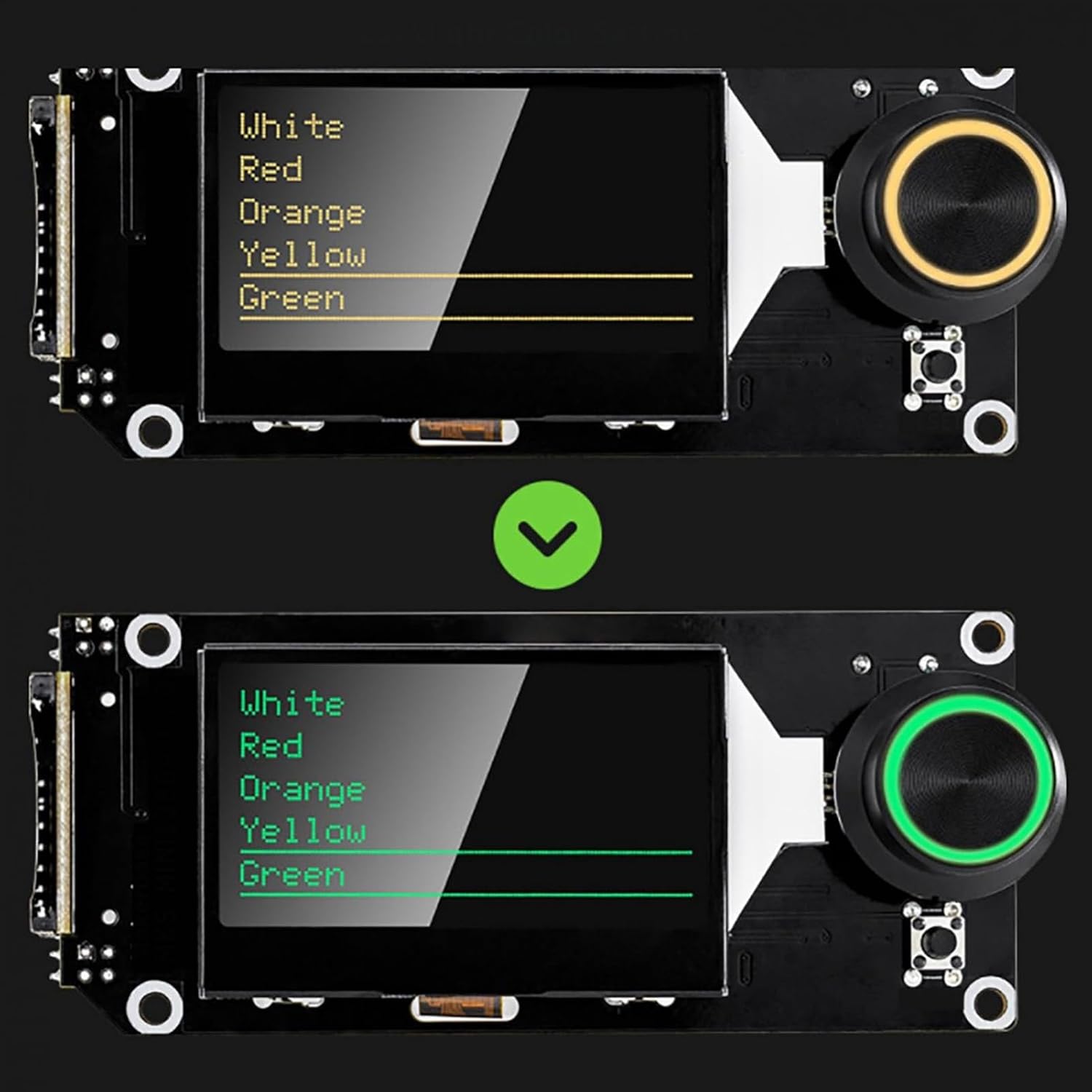

Backlight Mode: For Neopixel RGB adjustable backlight

Backlight Adjustment: Light – slight preset(for Martin)

Applicable Firmware: For Marlin 2.0, for Klipper

Applicable Motherboards: For MKS Robin V2, V3, for SgenlV1, v2, Genl, for Robin E3

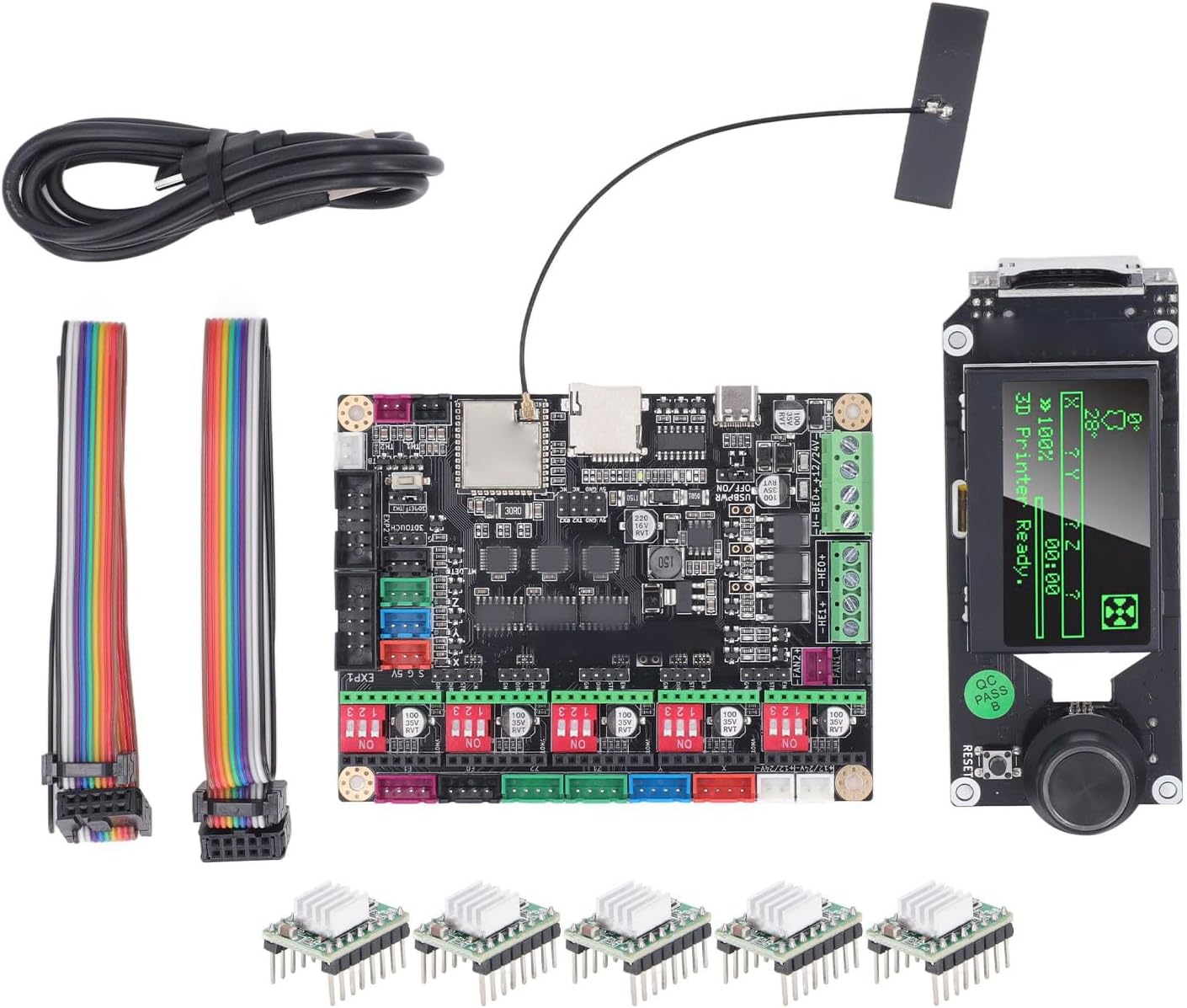

Package List:

1 x Control Panel

1 x USB Cable

1 x Display Screen (memory card side insert version)

2 x 10 Pin Colorful Flexible Flat Cable

5 x A4988 Stepper Motor Driver

5 x Driver Heat Sink

How To Use:

Follow the instructions to use.

[POWERFUL AND EFFICIENT]: Embedded dual-core 32-bit high-speed MCU and integrated andmodule for powerful performance.
[SUPPORT FIRMWARES]: Compatible with multiple firmware options and supports parameter adjustment and file selection printing. Plug and play on for RAMPS.
[EASY TO USE]: Complete microstepper motor driver with easy and multiple features.
[VARIOUS FUNCTIONS]: Support for Marlin2.0 firmware and various LCD screens. Update firmware via USB and control 3D printer through function.
[STORAGE CAPACITY]: 8 byte flash memory chip for effective in different application scenarios.
