< 【Attention】
Please take off your silicone stock
it will be damaged if the temperature is above 250 degrees for a long time.
【BMO Size】
62.35mm*21.7mm*18mm
Nozzle Diameter: Can be Matched arbitrarily
【Material Process】
High strength and high conductivity plated copper
Hexahedron hardened steel
High quality brass alloy
Low density high strength aluminum alloy
【What Models can be compatible with】
Compatible with all V6 hotend interfaces
Prusa I3 MK3/MK3S
Titan extruders
BMG extruders
【Package Included】
Hexagon Bar(1.27/1.50/2.00 each)
Open Wrench(5mm/12mm each)
M1.4 Inner hexagon screws*2pcs
M2.5 Hexagon socket head screws:4pcs
M3 Fastening screws*2pcs
Collect clip*1pc
Brass tube*1pc
Silicone sock*1pc
Thermal conductive silicone*1pc
Package Dimensions : 4.02 x 2.44 x 1.65 inches; 3.84 ounces
Date First Available : October 30, 2020
Manufacturer : BIQU
ASIN : B08M94C4XG
Best Sellers Rank: #30,765 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #431 in 3D Printer Accessories
Customer Reviews: 4.0 4.0 out of 5 stars 300 ratings var dpAcrHasRegisteredArcLinkClickAction; P.when(‘A’, ‘ready’).execute(function(A) { if (dpAcrHasRegisteredArcLinkClickAction !== true) { dpAcrHasRegisteredArcLinkClickAction = true; A.declarative( ‘acrLink-click-metrics’, ‘click’, { “allowLinkDefault”: true }, function (event) { if (window.ue) { ue.count(“acrLinkClickCount”, (ue.count(“acrLinkClickCount”) || 0) + 1); } } ); } }); P.when(‘A’, ‘cf’).execute(function(A) { A.declarative(‘acrStarsLink-click-metrics’, ‘click’, { “allowLinkDefault” : true }, function(event){ if(window.ue) { ue.count(“acrStarsLinkWithPopoverClickCount”, (ue.count(“acrStarsLinkWithPopoverClickCount”) || 0) + 1); } }); });
【Materials Choice 】 The hotend’s core parts are mainly composed of copper alloy material which has the advantage of faster heating and better heat dissipation.

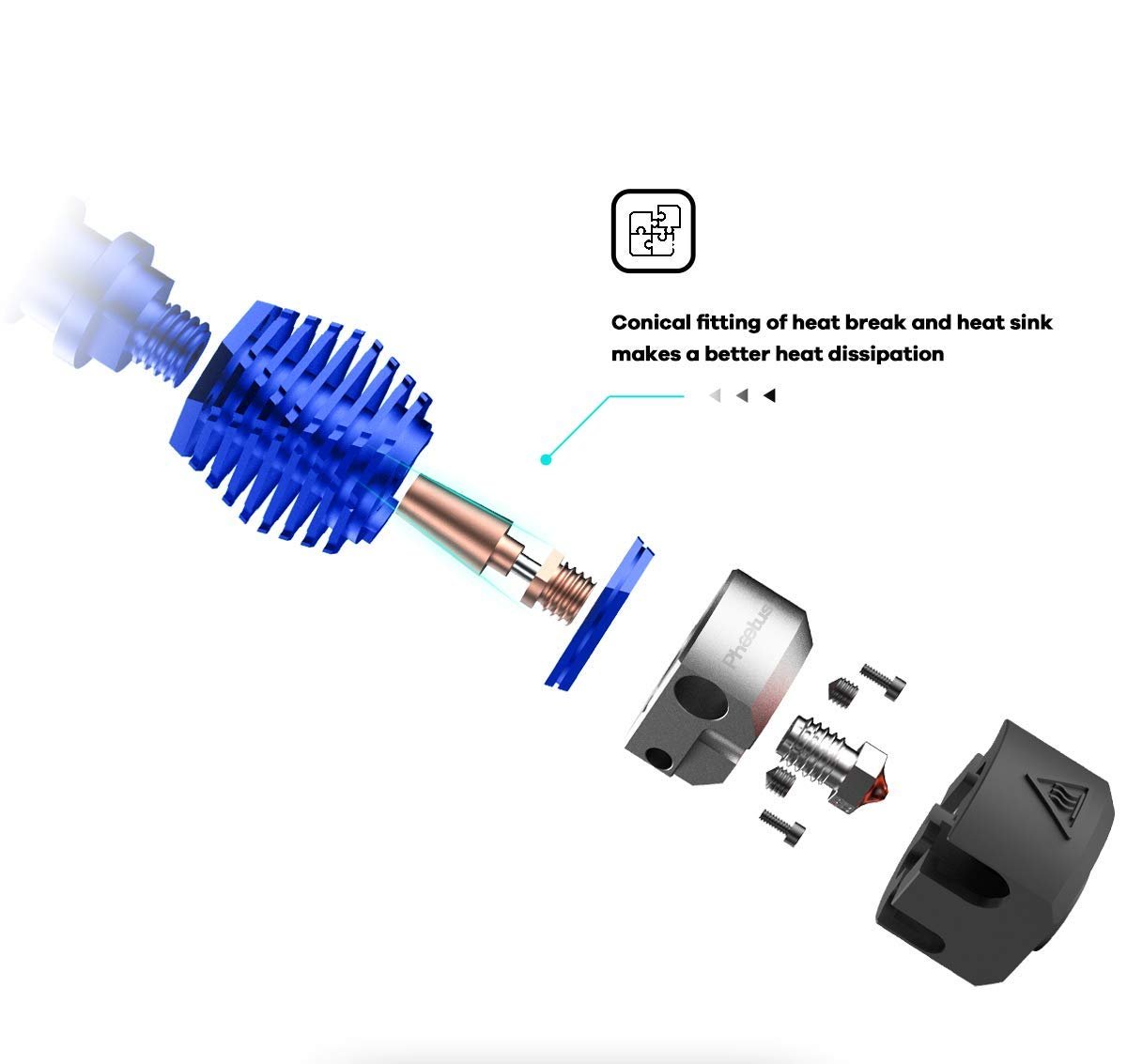

【O utstanding Heat Dissipation】Heat sink and heat break adopt conical surface fitting design,increase heat dissipation.
【 High temperature resistance】Standard all metal kit with overall high temperature resistance up to 500℃.
【 What Filament can be used】Dragon Fly BMO compatible with all filament PLA,ABS PETG,TPU,PP,PC,Nylon,PEEK,PEI and composite materials containing abrasive additives,such as carbon fiber,steel,wood,boron carbide,tungsten and phosphorescent pigment.
【Low Roughness】The inner hole roughness of the heat break ≤Ra0.3 which allow a smoother movement of filament.
