Product Description
The Choice of Entry-level
10K Ultra High Resolution
Photon Mono 4 comes with a large protective film for LCD screen, If you have printing problems when using it, Please try the following stepsFirstly, try increasing the bottom exposure by about 5 secondsAt the same time, try cutting the scratch resistant film to just cover the exposed screen
Powerful LighTurbo Source
The Story is in the Details

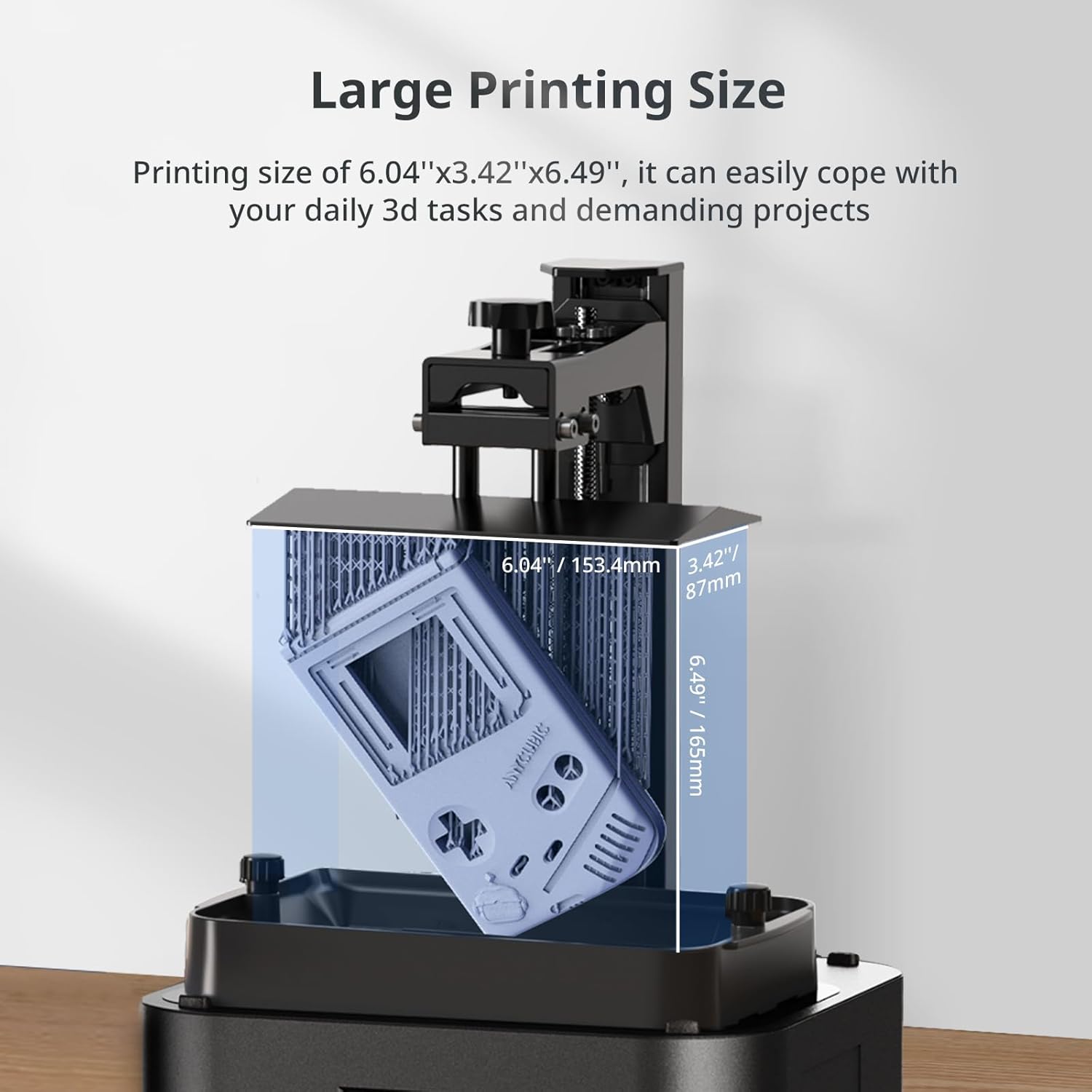

Dream Big, Think Big, Print Bigger
With a generous maximum print volume of 2.2L (153.4mm*87mm*165mm), you have ample print space to easily tackle your daily tasks and demanding projects.

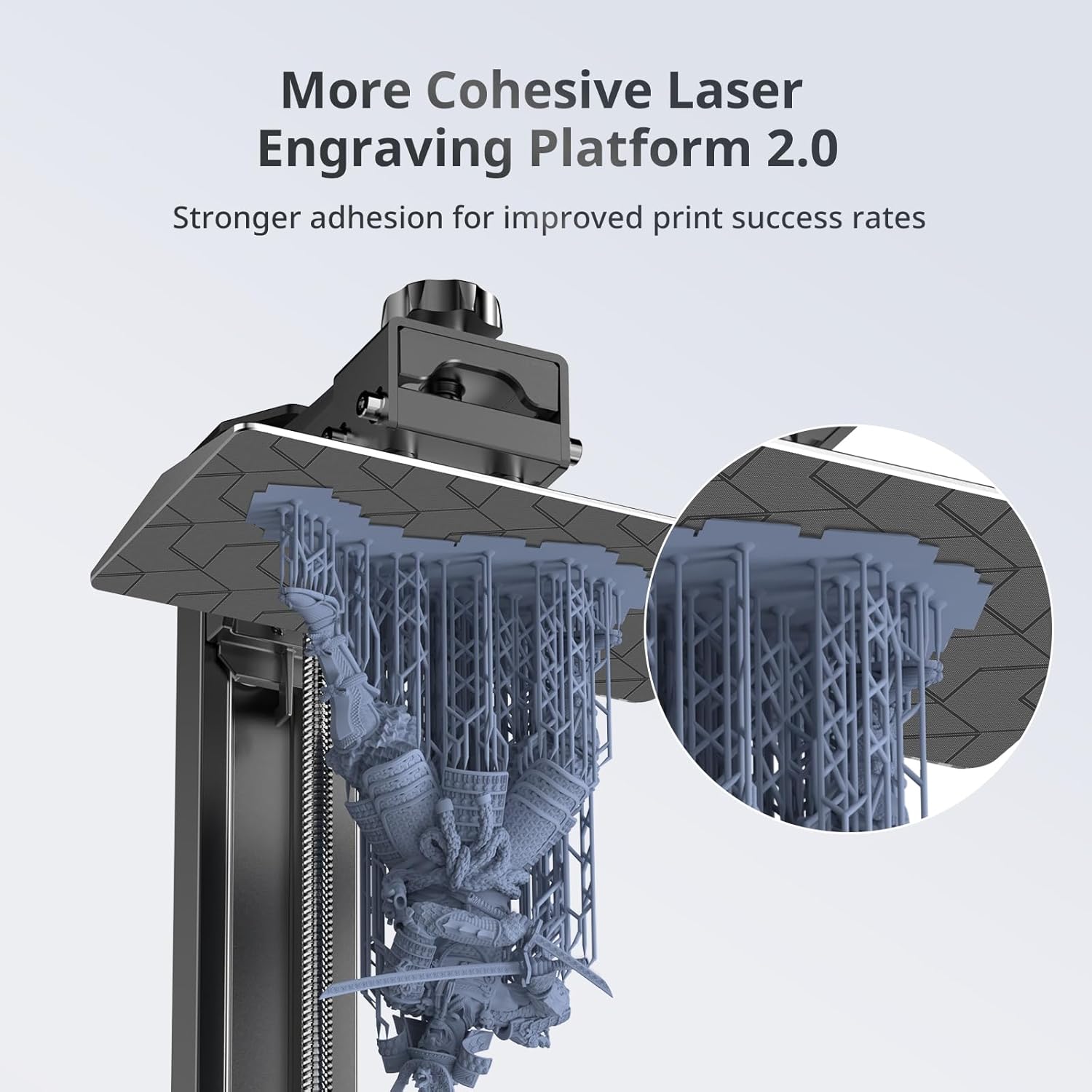

More Cohesive Platform 2.0
With a re-engineered build platform and redesigned laser-engraved patterns, this generation of build platforms provides just the right amount of adhesion to mitigate model lifting and warping during printing while keeping the removal process simple and smooth.

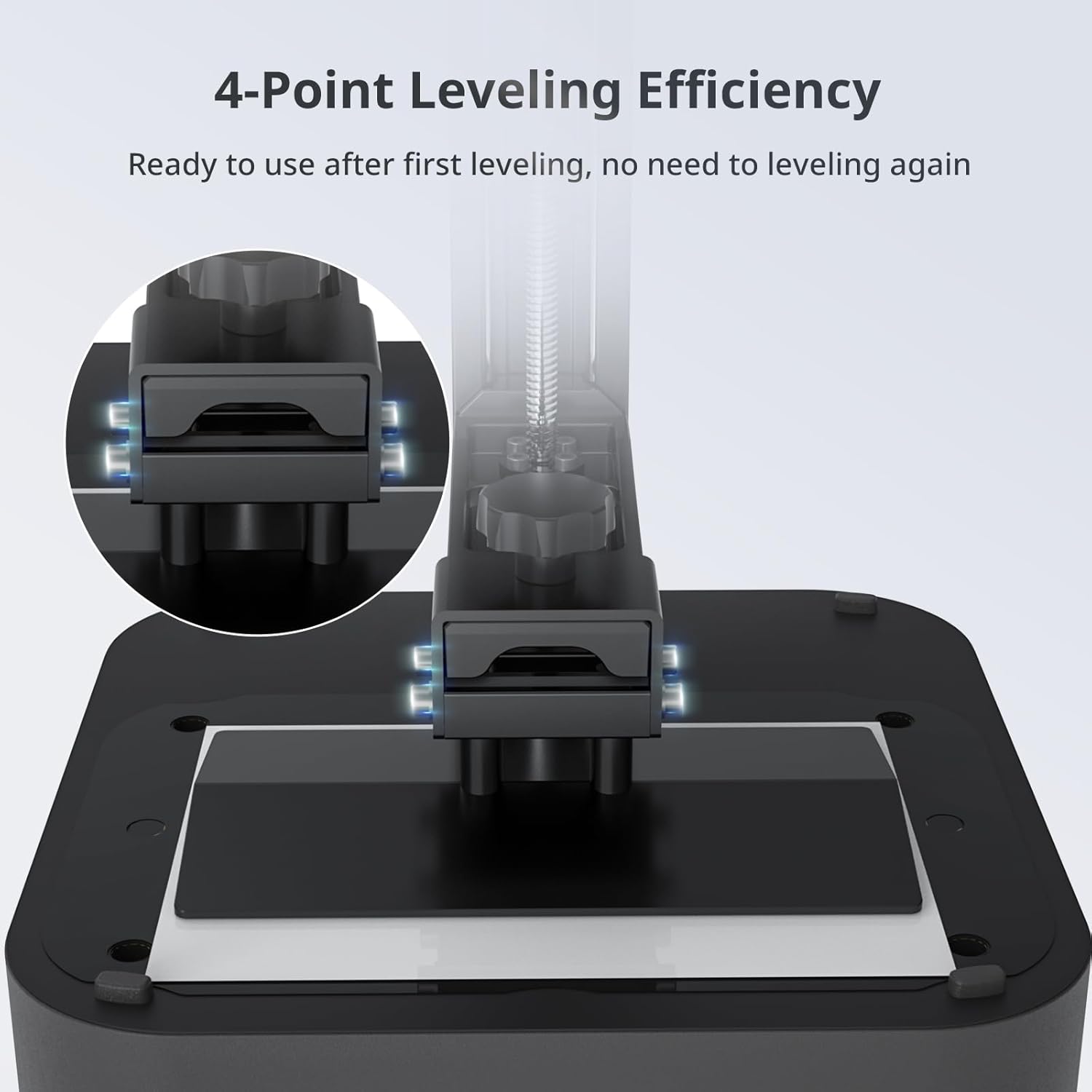

4-Point Leveling Efficiency
Every Mono 4 printer was assembled, calibrated, tuned, and tested before shipment. So when you received the printer, simply unbox and start printing. (Leveling is needed before printing.)

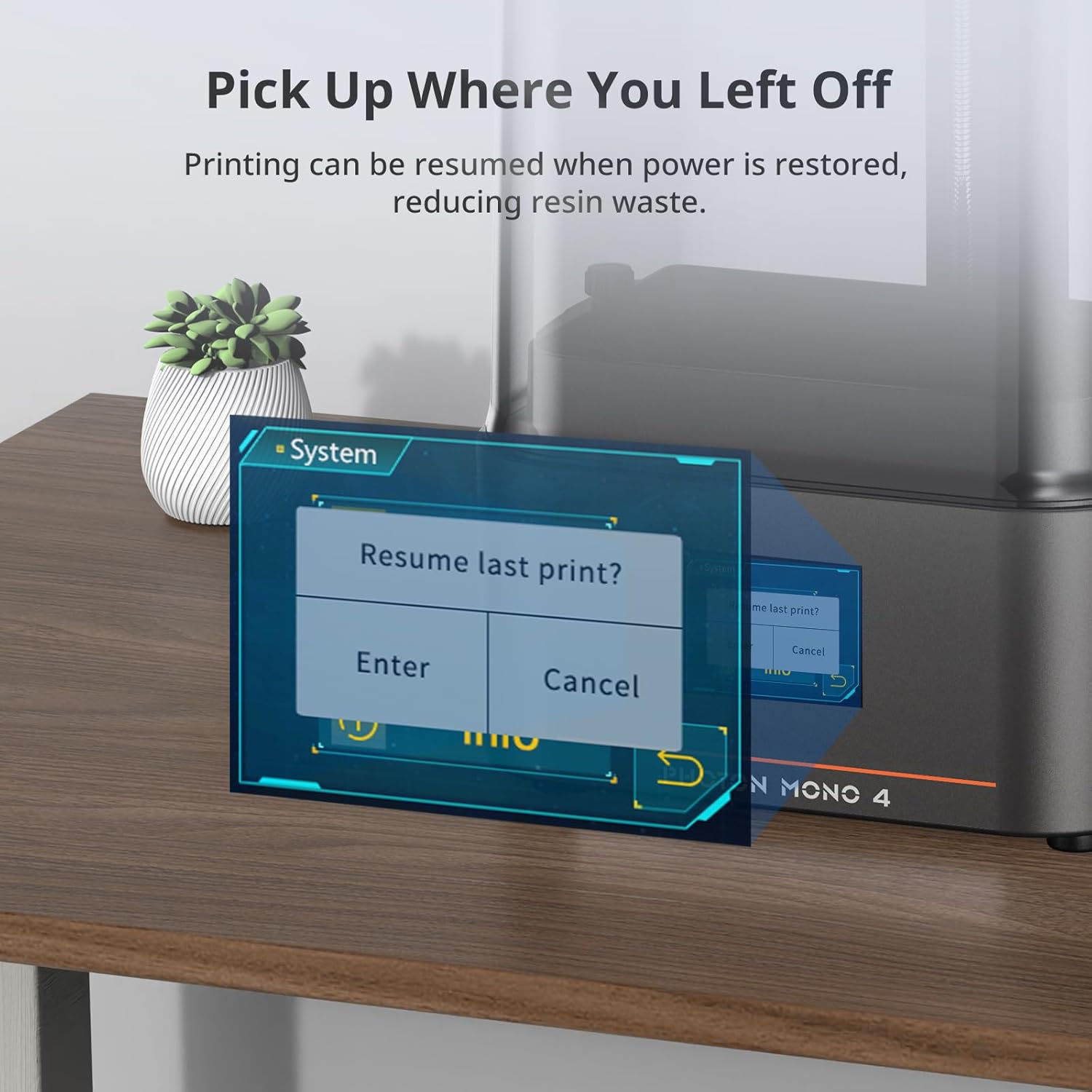

Pick Up Where You Left Off
When a sudden power outage interrupts the printing process, the printer is designed to resume printing once power is restored. This feature significantly reduces waste of materials and time.
What slicing software do I need?
It is recommended to use the official Photon Workshop slicing software, which supports exporting .pm4n format.
What should I do if the print fails?
The model is not supported → automatically generate support with the software
The platform is not flat → re-level
Underexposure/overexposure → refer to the parameters recommended by the resin manufacturer.
How to clean the model?
Steps: Soak in 95% alcohol for 3 minutes (or ultrasonic cleaning machine)/gently brush the residual resin with a soft brush/second alcohol rinse and UV secondary curing.
How long is the life of the LCD screen?
About 2000 hours of normal use.
How to improve the printing success rate?
2 key tips: Place the large model at a 45° tilt to reduce stress/Replace the FEP film with a new one when the printer indicates that the FEP film has reached the end of its life.
ANYCUBIC’s
Add to Cart
Customer Reviews
4.3 out of 5 stars 163
4.1 out of 5 stars 28
4.3 out of 5 stars 1,415
4.3 out of 5 stars 1,415
4.6 out of 5 stars 3,092
4.7 out of 5 stars 9,776
4.7 out of 5 stars 9,776
Price
$169.99$169.99
$239.99$239.99
$689.99$689.99
$799.99$799.99
$99.99$99.99
$16.99$16.99
$29.99$29.99
LCD Type
7” Mono LCD
7” Mono LCD
10.1‘’ Mono LCD
13.6” Mono LCD
—
—
—
Light Source
Matrix
COB
COB
COB
—
—
—
Build Area
6.04” x 3.42” x 6.49”
6.04” x 3.42” x 6.49”
8.77”x4.96”x9.05”
11.8” x 11.7” x 6.5”
—
—
—
XY Resolution
9024×5120(10K)
9024×5120(10K)
13312 x 5120(14K)
6480 x 3600(7K)
—
—
—
Max Printing Speed
70mm/h or 50mm/h
120mm/h or 70mm/h
170mm/h/or 130mm/h
60mm/h
—
—
—
Materials
High Speed or 405mm Resin
High Speed or 405mm Resin
High Speed or 405mm Resin
High Speed or 405mm Resin
—
405nm UV-Resin
High Speed Resin
【7” 10K High Resolution】Photon Mono 4 boasts an impressive 105% increase in print precision compared to Mono 2. With a resolution of 9024×5120, each pixel measures a mere 17×17μm on the X and Y axes. This enhanced capability allows for creating models with exceptional detail and dynamic richness.

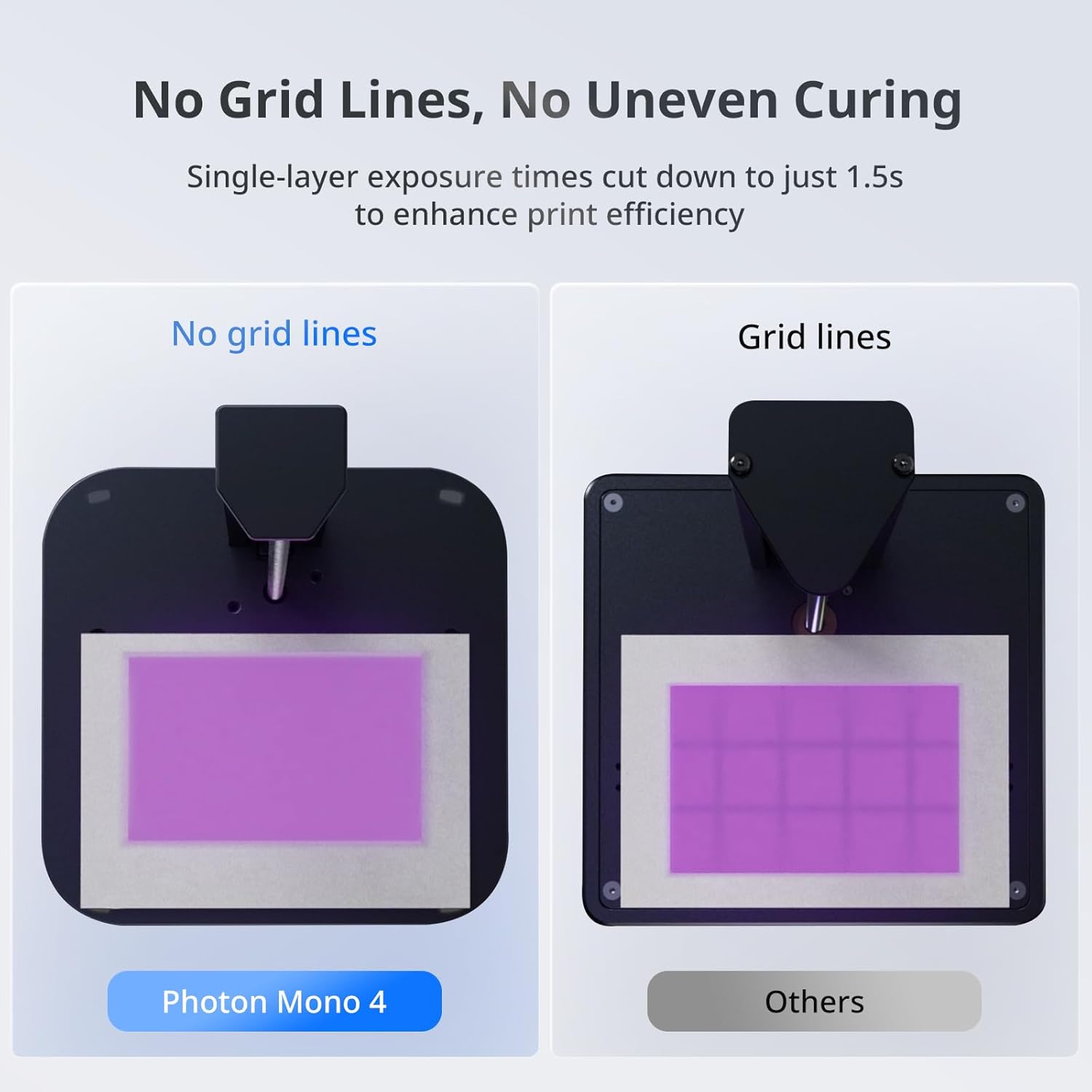

【Powerful Light Source】The time-tested Anycubic LighTurbo matrix light source technology delivers stable, balanced, and uniform lighting to reduce layer lines and rasterization, creating models with ultra-smooth surface and maximum print details.
【Sufficient Print Size】With a generous maximum build volume of 6.04” x 3.42” x 6.49”/153.4mm x 87mm x 165mm, you have ample print space to easily tackle your daily tasks and demanding projects.
【Laser-engraved Print Platform 2.0】With a new design, the laser engraving platform of the photon mono 4 improves adhesion to mitigate lifting and warping of the model during 3d printing, while keeping the removal process simple and smooth.
【User-friendly Function】The 4-point leveling method is ideal for beginners, after the first leveling and tightening the 4 screws, no need to repeat leveling. Photon mono 4 can resume printing when power is restored, effectively reducing material and time wastage.
Anycubic APP service is not support for Photon Mono 4
