Product Description

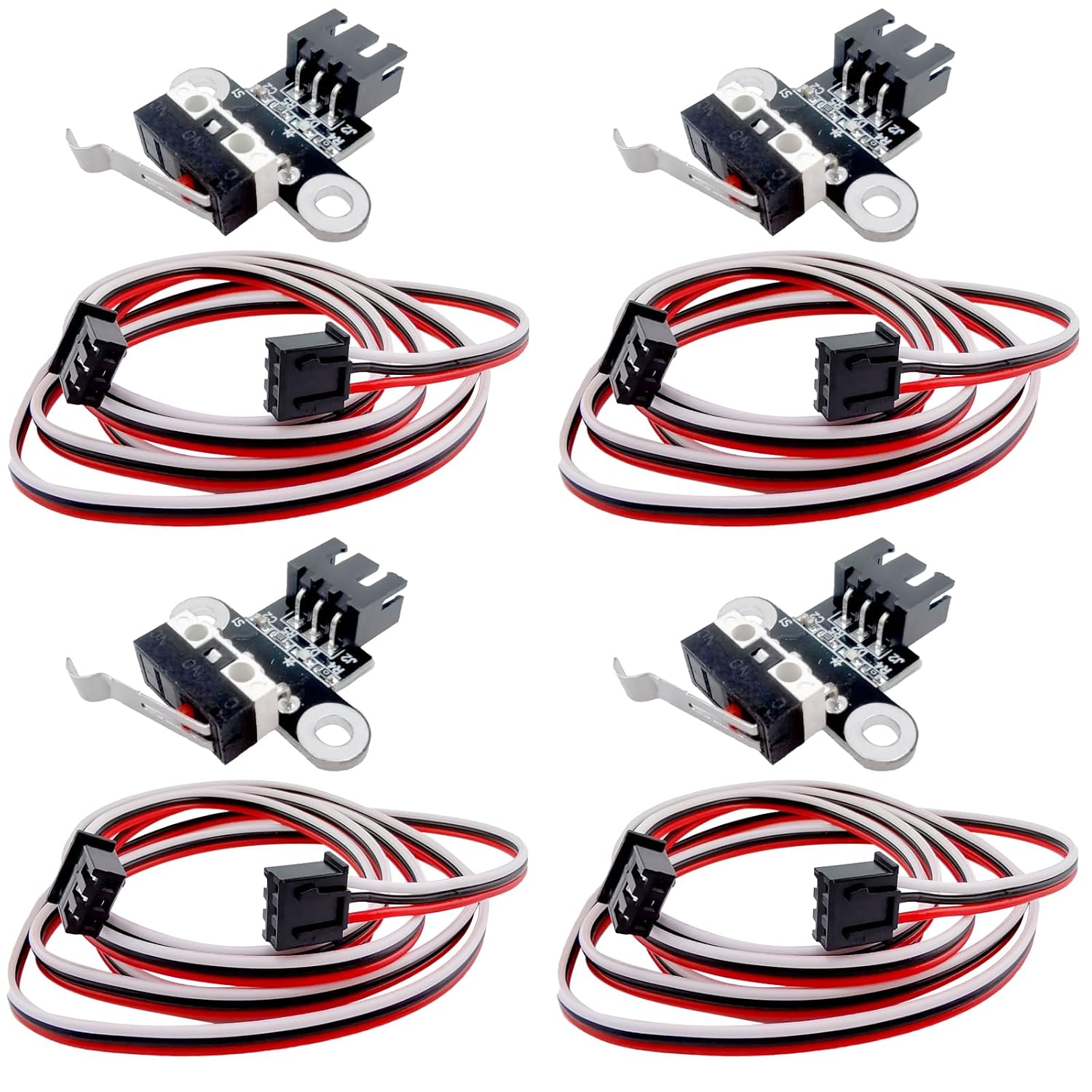

4Pcs 3D Printer Switch Mechanical Limit Switch Module Micro Endstop Switches with 1m 3pin Conecting Cable.
3D Printer Limit Switch Motherboard Accessories:

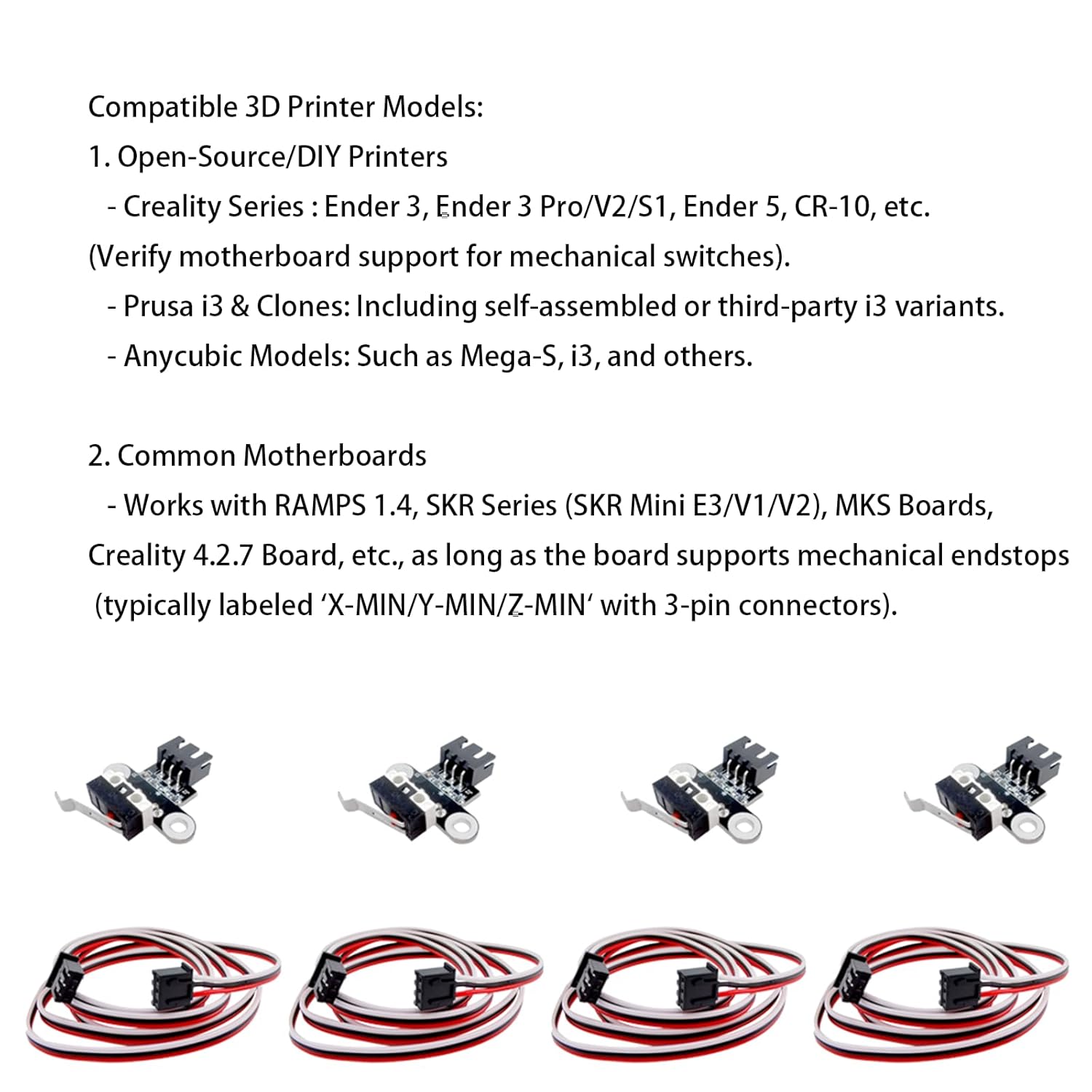

Package Includes: 4Pcs 3D Printer Part Accessories Limit Switch. 4Pcs Conecting Cable. XH2.54 3PIN.Cable Length: 39.3 inch.Switch Pins: 3 Pins.Compatible 3D Printer Models:1. Open-Source/DIY Printers – Compatible for Creality Series : Ender 3, Ender 3 Pro/V2/S1, Ender 5, CR-10, etc. (Verify motherboard support for mechanical switches). – Prusa i3 & Clones: Including self-assembled or third-party i3 variants. – Compatible for Anycubic Models: Such as Mega-S, i3, and others. 2. Common Motherboards – Works with RAMPS 1.4, SKR Series (SKR Mini E3/V1/V2), MKS Boards, Creality 4.2.7 Board, etc., as long as the board supports mechanical endstops (typically labeled `X-MIN/Y-MIN/Z-MIN` with 3-pin connectors).
Mechanical Limit Switch Module used as an endstop sensor for X/Y/Z axes in 3D printers.

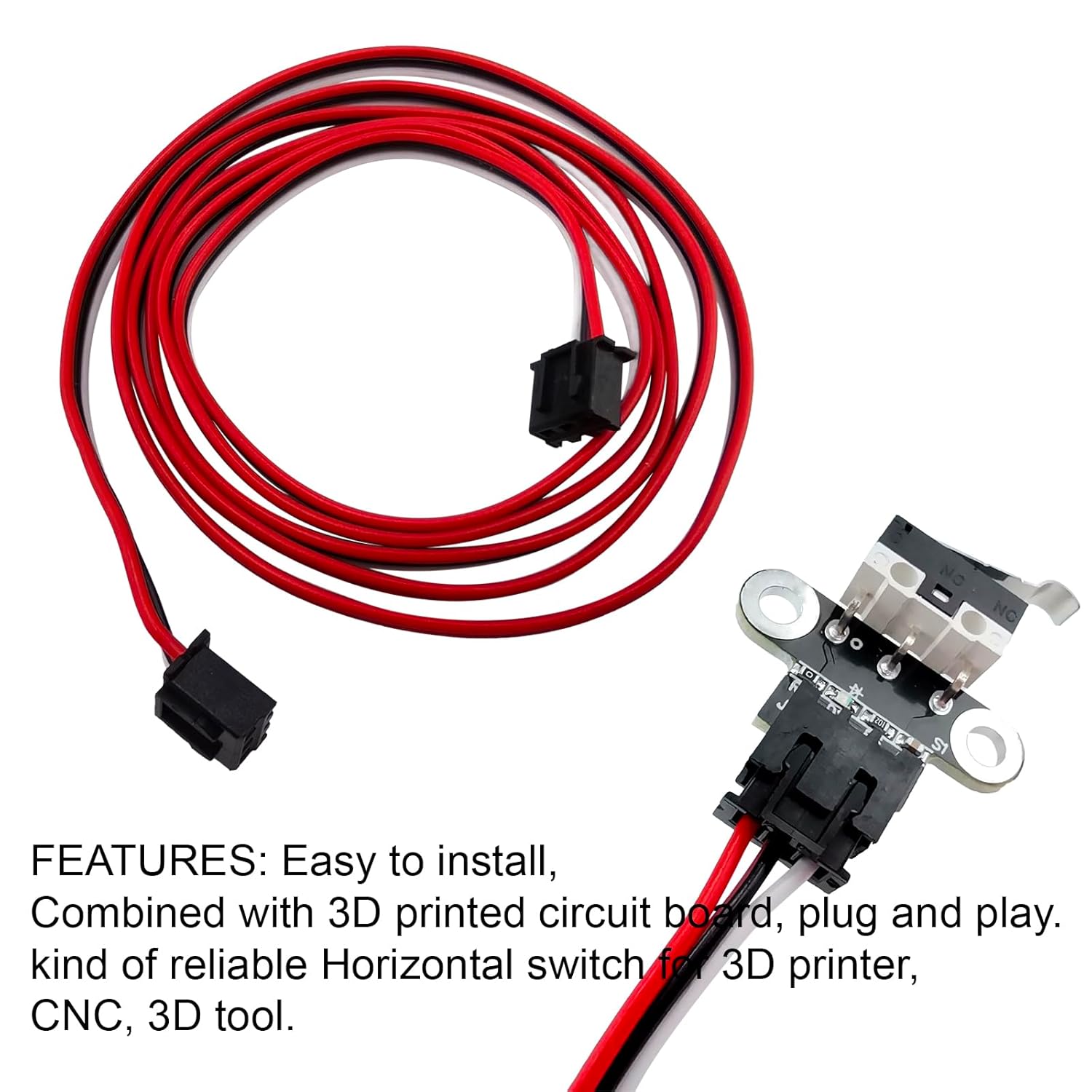

Easy installation, with a trigger light.Combined with 3D printing board, plug and play.
Key Compatibility Factors:
1. Connector Type

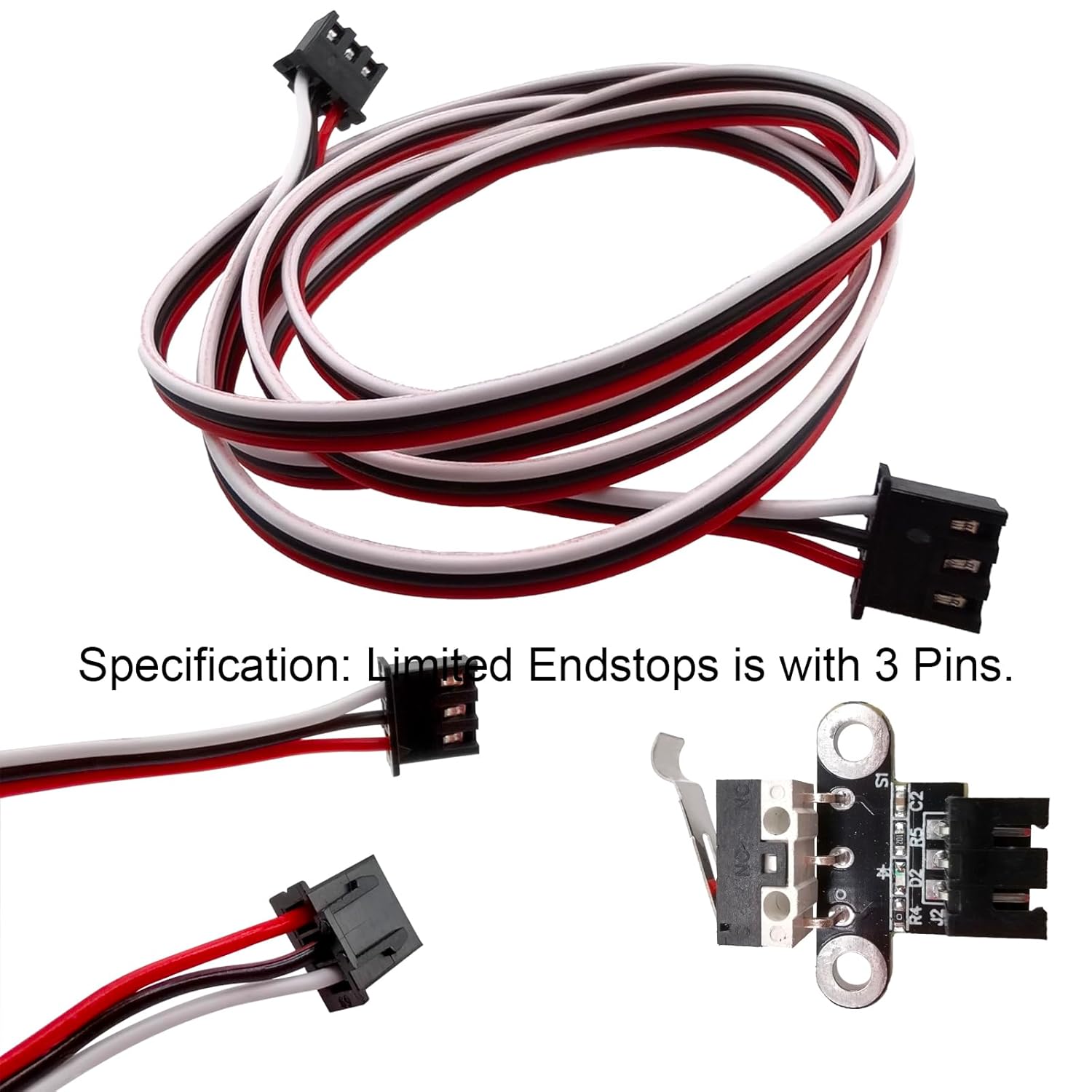

– The 3-pin (VCC, GND, Signal) mechanical switch can plug directly into most 3D printer endstop ports.
– Some boards may require firmware (e.g., Marlin) adjustments, ensuring (ENDSTOP_TYPE) is set to (Mechanical).
3D Printer Horizontal Mechanical Limit Switch Module Miniature Limit Switch with 1m Cables.
This Limited Switches is use of reliable Horizontal switch for 3D printer, CNC, 3D tool.
Note:
when wiring these to a BTT Manta M8P (or other manta models), depinning/swapping the red and white wires on one end of the supplied cable is needed to avoid a “short”. Plugging these in without rewiring will cause your board to immediately shutdown.
Limit Switches
The LED features let you know when limit switch has been triggered.
Wiring with LED features:
Red – 5 volts dc
Black – ground
White – output signal
When the limit switch is in its default the output signal is ground. //default, limit switch has not been pressed.
When the limit switch has been triggered the output signal is 5 volts. //this is when the limit switch has been pressed.
Wiring without LED features:
NC Normally Closed, limit switch has not been pressed. //use black and white wire.
NO Normally Open, limit switch has been press. //use red and white wire.
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.1 out of 5 stars 53
4.7 out of 5 stars 97
4.5 out of 5 stars 102
4.7 out of 5 stars 97
4.9 out of 5 stars 8
4.5 out of 5 stars 81
Price
$8.99$8.99 $10.99$10.99 $7.99$7.99 $7.99$7.99 $21.99$21.99 $7.99$7.99
Compatible
4Pcs 3D Printer Stepper Motor Cable 4Pin to 6Pin, Ender Stepper Motor Cables XH2.54 Use for 3D Printer Nema 17 Stepper Motor, 1000mm 16Pcs V6 Nozzles kit Compatible for E3D V5 V6 Hotend, V6 Nozzle 0.2/0.3/0.4/0.6mm Compatible with ANYCUBIC I3 Mega A8 Prusa I3 MK3/MK3S 3D Printer, and 10Pcs 3D Printer Nozzles Cleaning Needles, 4Pcs Ender 3 Thermistor 1m/39.4Inches, 3D Printer ohm NTC 100K 3950 Thermistor Temp Sensor Compatible for Creality Ender 3/Ender 3 Pro/Ender 3 Neo/Ender 5/Voxelab Aquila, 2Pin XH2.54, 16Pcs Ender 3 Nozzles 0.4mm Assembled Ender 3 Max Neo Hotend Upgrade 6Pcs Ender 3 V3 SE Silicone Sock
Package Dimensions : 6.29 x 5.11 x 0.39 inches; 1.41 ounces
Date First Available : May 21, 2025
Manufacturer : TIEXYE
ASIN : B0F9F18259
Country of Origin : China
Best Sellers Rank: #34,866 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #489 in 3D Printer Accessories
Customer Reviews: 4.1 4.1 out of 5 stars 53 ratings var dpAcrHasRegisteredArcLinkClickAction; P.when(‘A’, ‘ready’).execute(function(A) { if (dpAcrHasRegisteredArcLinkClickAction !== true) { dpAcrHasRegisteredArcLinkClickAction = true; A.declarative( ‘acrLink-click-metrics’, ‘click’, { “allowLinkDefault”: true }, function (event) { if (window.ue) { ue.count(“acrLinkClickCount”, (ue.count(“acrLinkClickCount”) || 0) + 1); } } ); } }); P.when(‘A’, ‘cf’).execute(function(A) { A.declarative(‘acrStarsLink-click-metrics’, ‘click’, { “allowLinkDefault” : true }, function(event){ if(window.ue) { ue.count(“acrStarsLinkWithPopoverClickCount”, (ue.count(“acrStarsLinkWithPopoverClickCount”) || 0) + 1); } }); });
Package Contents: 4Pcs 3D Printer Horizontal Mechanical Limit Switch Module Miniature Limit Switch 3 Pins with 4Pcs 1m 3D Printer Limit Switch Cables.
This Limited Switches is use of reliable Horizontal switch for 3D printer, CNC, 3D tool. (note: when wiring these to a BTT Manta M8P (or other manta models), depinning/swapping the red and white wires on one end of the supplied cable is needed to avoid a “short”. Plugging these in without rewiring will cause your board to immediately shutdown.)

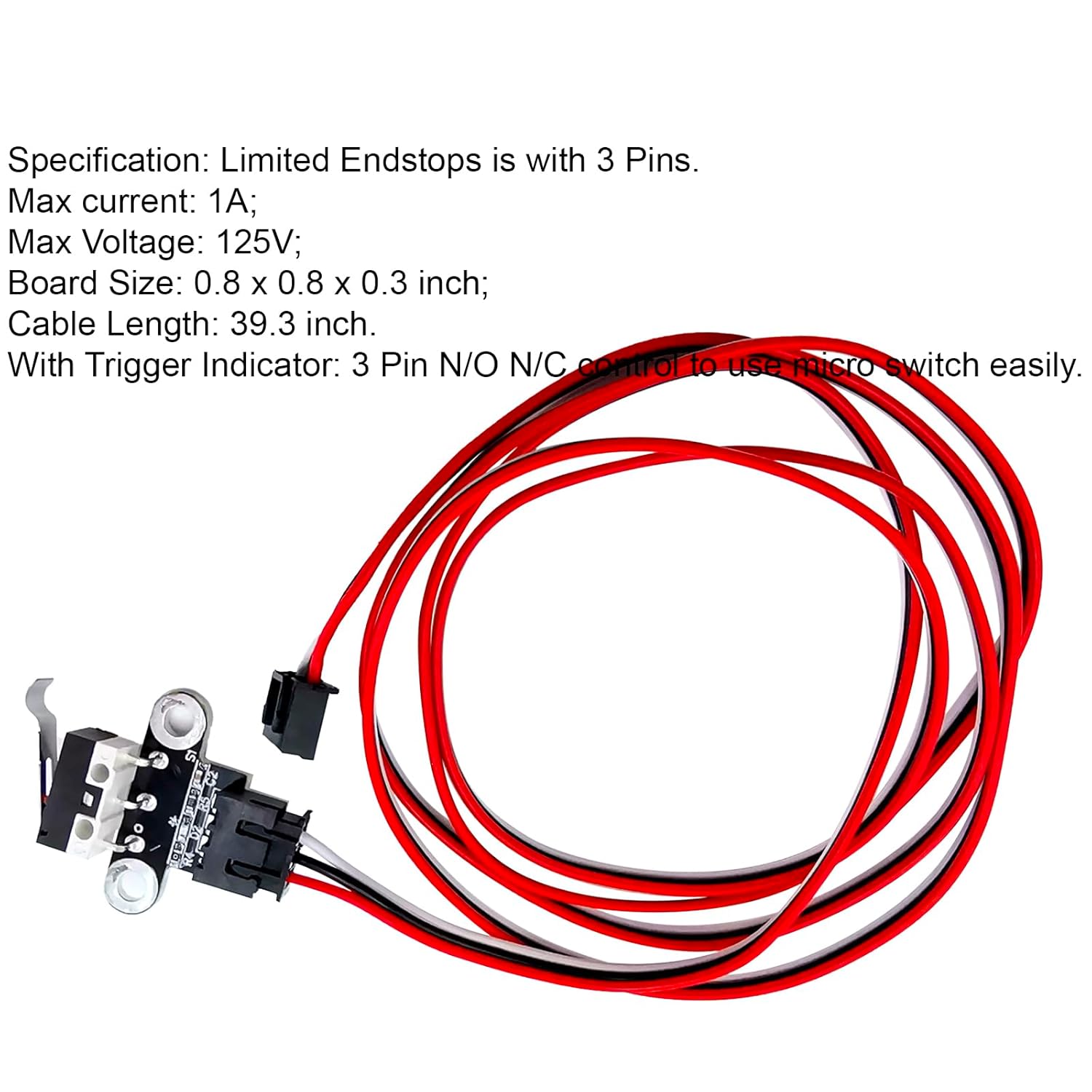

Easy installation, with a trigger light. 3 Pin N/O N/C control to use micro switch easily.

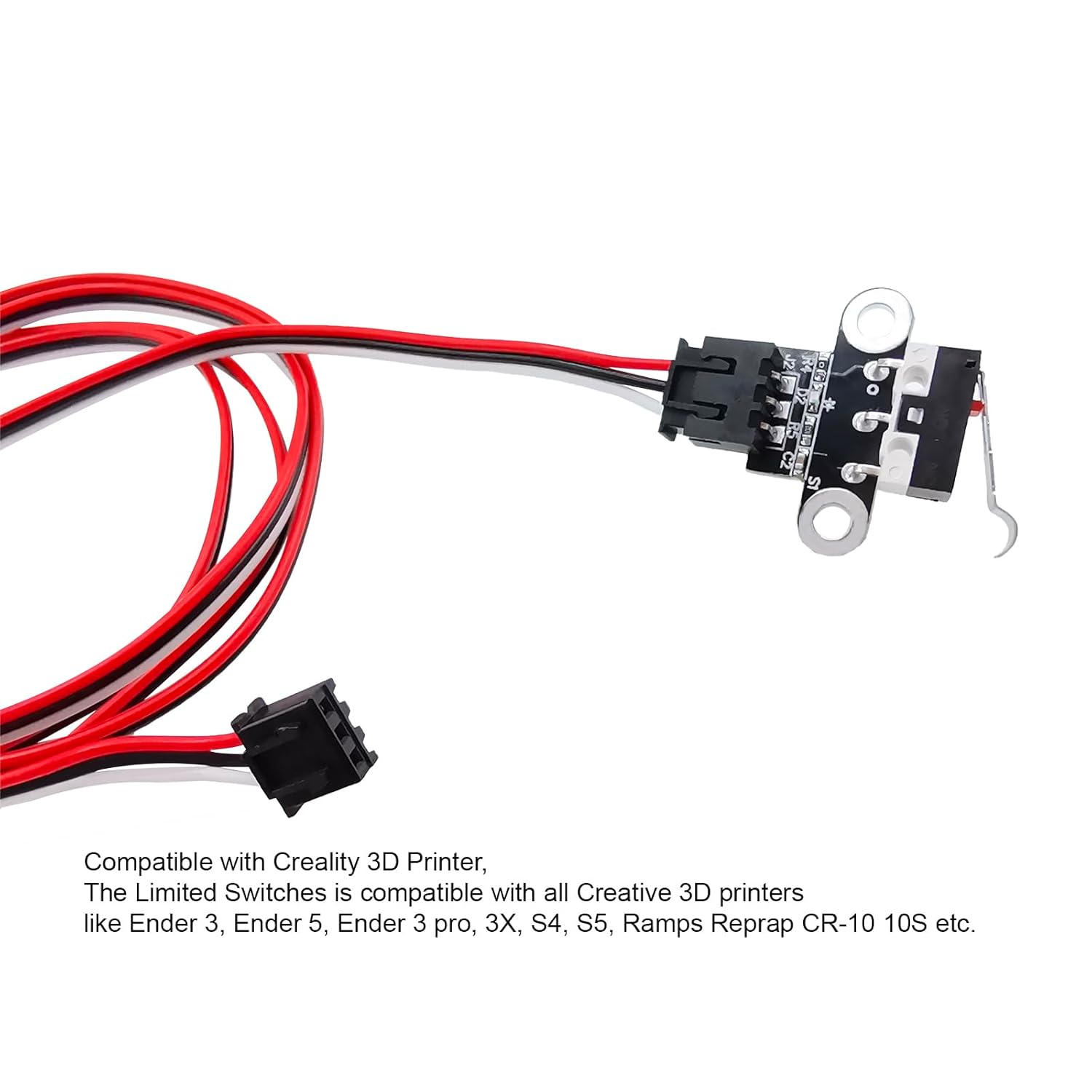

The Limit Switch compatible with 3D printers Ender 3, Ender 3 v2, Ender 3 s1, Ender 5, Ender 3 pro, Ender 3X, S4, S5, Prusa i3, Mega-S, i3, etc.
Mechanical Limit Switch Module Combined with 3D printing board, plug and play.
