How to Use:
Now you can either use the memory card or USB disk, you can configure on the Configuation_adv.h:
Use memory card:
define USB_FLASH_DRIVE_SUPPORT
Use USB disk:
define USB_FLASH_DRIVE_SUPPORT
We are making effort to memory card and USB disk work together, and will update the firmware soon.
Specification:
Item Type: 3D Printer Parts Set
Material: Electronic Components
Microcontroller: STM32F407VET6 (168 MHz)
Flash: 512 KB Flash
Memory: 192 KB RAM
Connectivity: USART1, SPI2
Virtual USB Device: Support
Pulse Width Modulation TTL: Support
Standalone Serial Port: supported (UART3)
Power TVS : Yes
EEPROM: 4KB AT24C32DM
SPI Flash: 8M W25Q64JVSIQ

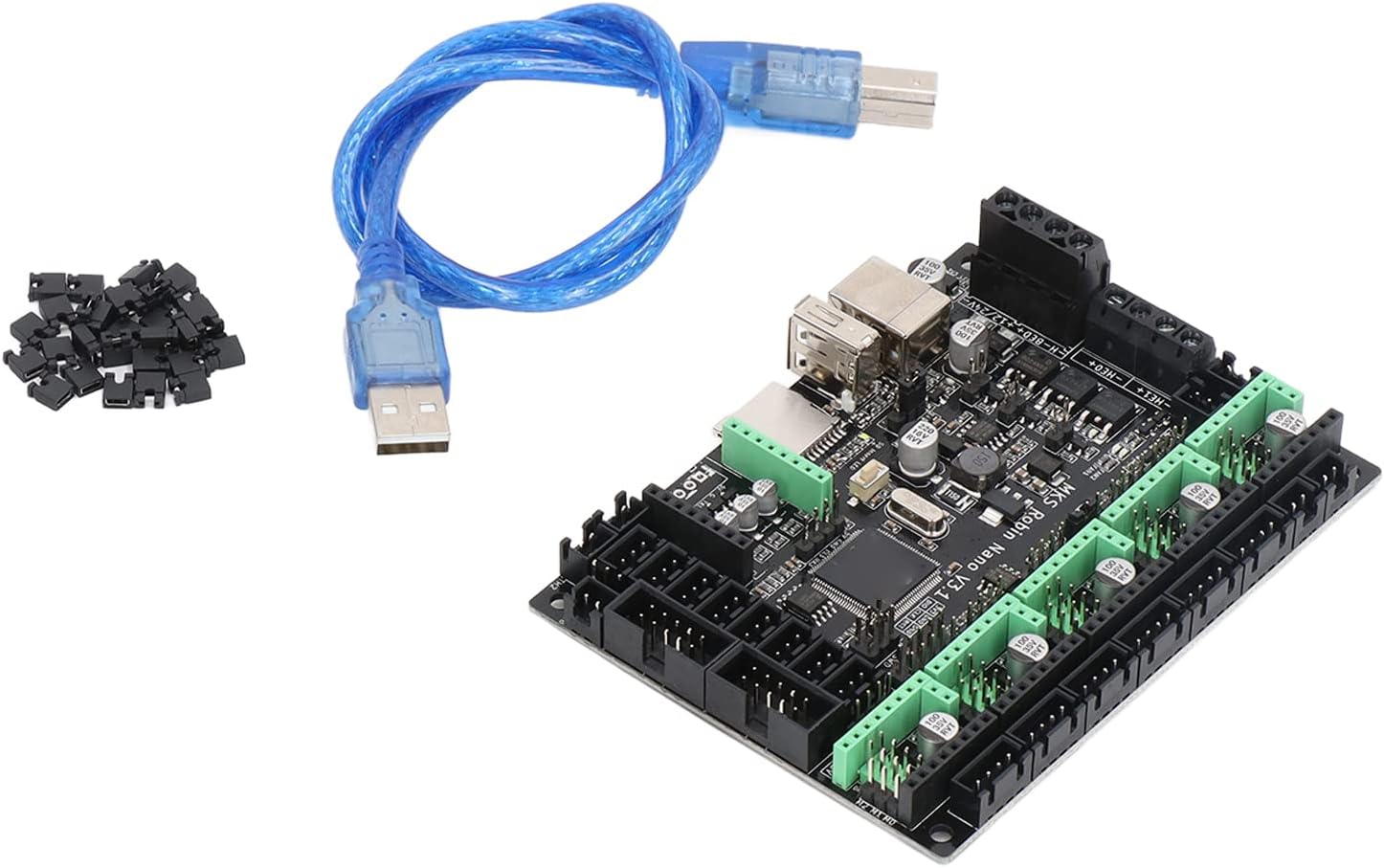

Package List:

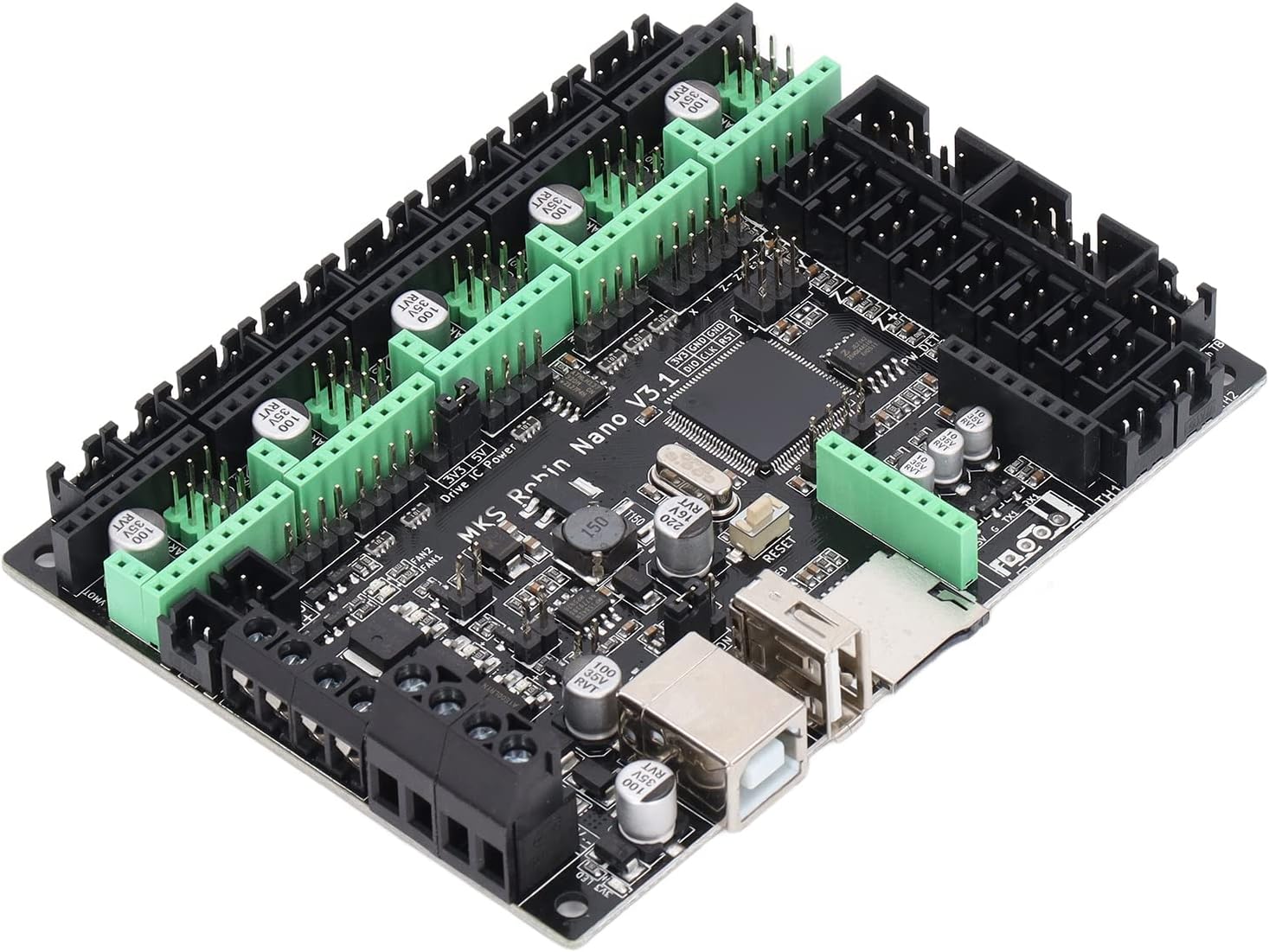

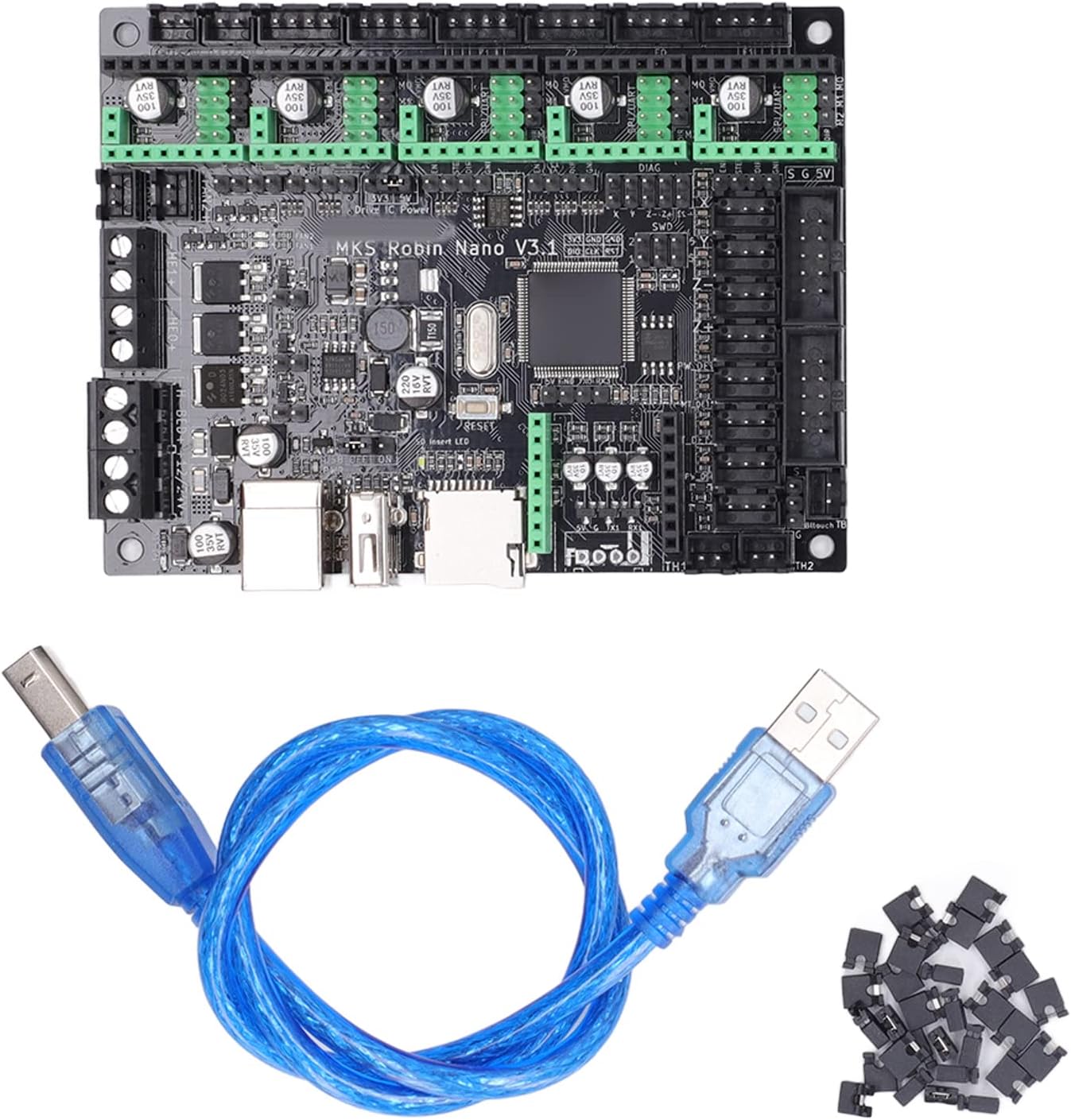

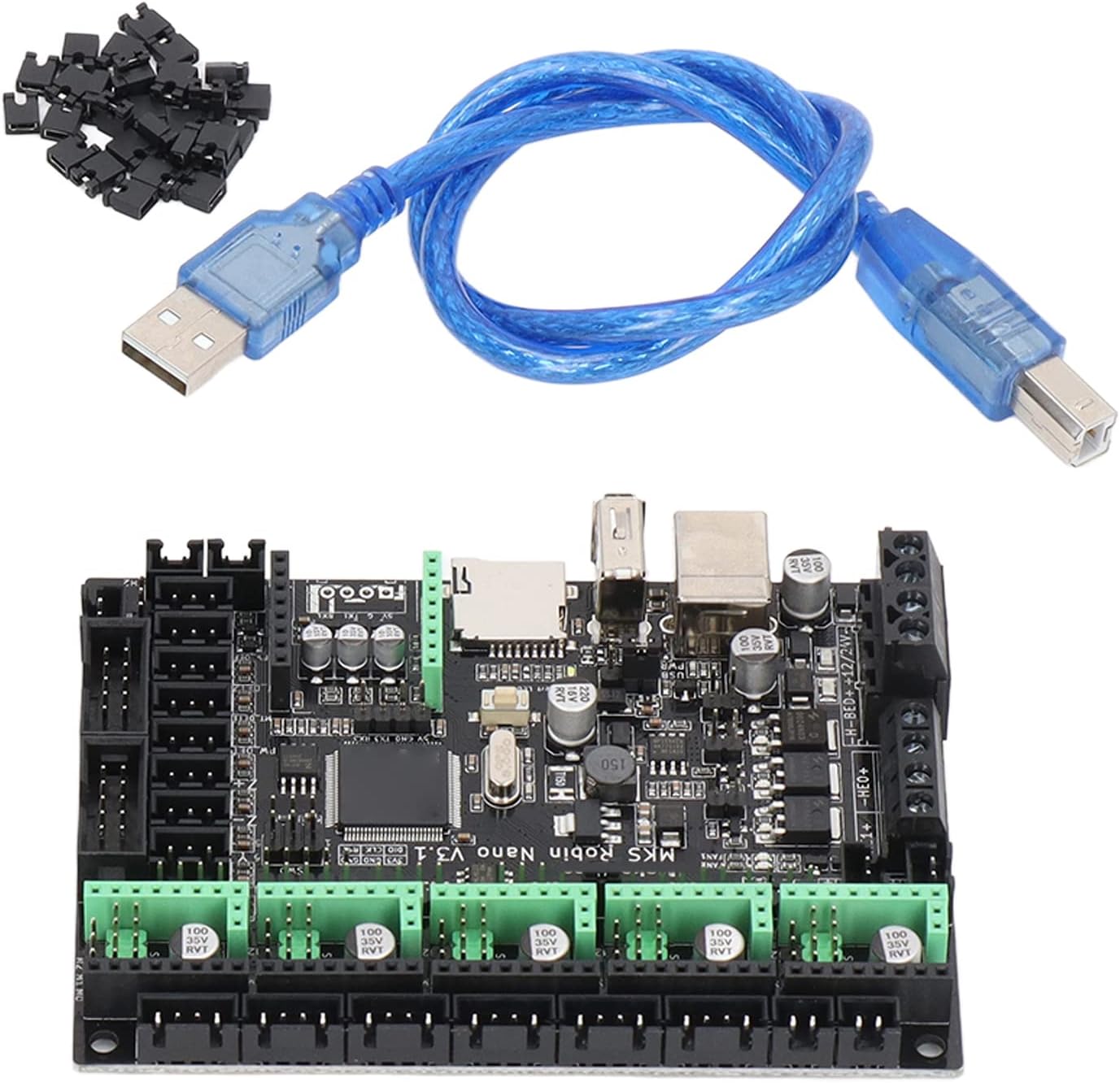

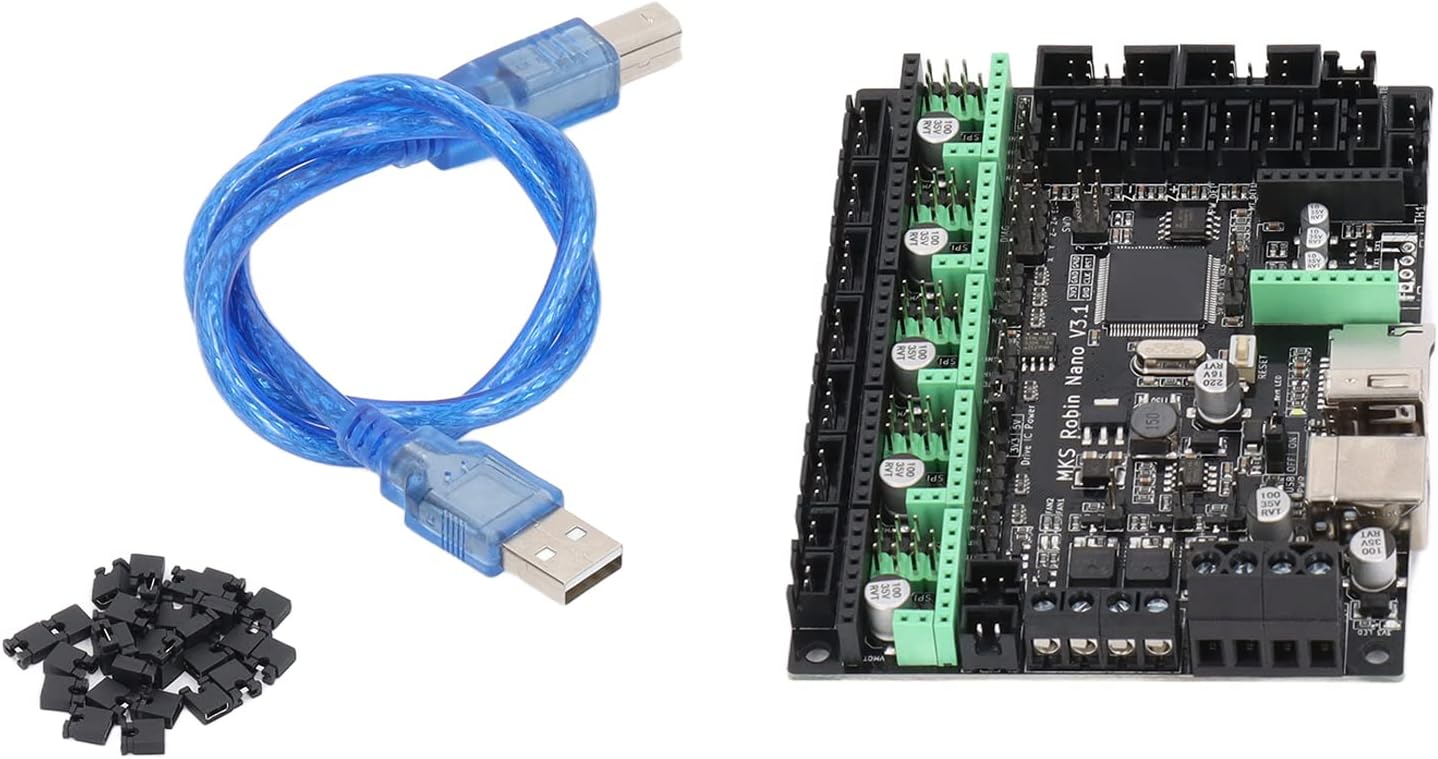

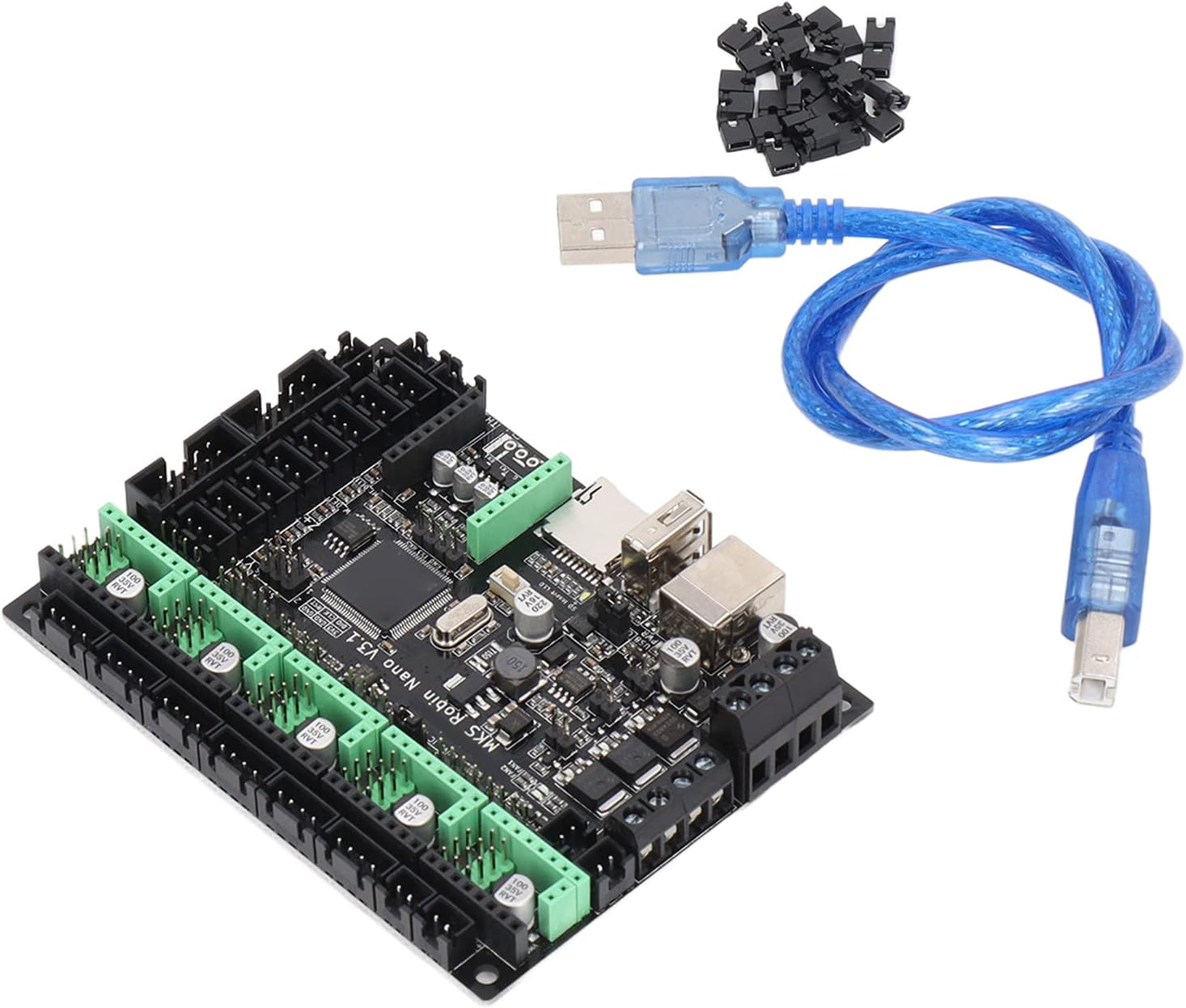

1x MKS Robin Motherboard
1 x USB Data Cable
25 x Jumper Cap
or
1 x MKS Robin Motherboard
1 x MKS TS35 Screen
2 x 40cm Flat Cable
1 x USB Data Cable
25 x Jumper Cap
or
1 x MKS Robin Motherboard
1 x MKS TS35 Screen
2 x 40cm Flat Cable
1 x USB Data Cable
25 x Jumper Cap
1 x MKS Robin
Upgrade Type: This 3D printer motherboard is an upgrade from the previous model, which means that this motherboard can have a newer performance on the machine with the same repository just by modifying the motherboard type to compile the relevant firmware.
Anti Interference Performance: The 3D printer motherboard has anti interference ability, which will the machine play more stable and the working process more great.
Schottky Diode: Schottky diode made by using the principle of metal semiconductor junction formed by metal semiconductor is added to the temperature measurement circuit and MOS circuit, which makes the switching frequency high and the forward voltage lower, which can the operator more comfortable during
Easy to Carry: This 3D printer motherboard is more portable, you can carry it with you when you need to replace it, and it can be easily stored when not in use, saving space.
TVS : TVS is added to the power supply input, allowing high performance devices to achieve high performance , high transient power, low leakage current, low breakdown voltage deviation, easy control of clamping voltage, and no damage limit.
